Model: WS-18944
This antenna is compatible with, amongst others, the Raspberry Pi Compute Module 4 and supports the 2.4G and 5G Wi-Fi frequency bands...
€3.00
Ex Tax:€2.48
Model: 2.4GHZANTSMASMALL90
An antenna for, for example, Wi-Fi or Bluetooth.
Specifications:
Gain: 3dBi
Impedance: 50Ω
Frequency range: 2400-2500MHz
Connector: SMA male
Orientation: 90 degrees
Dimensions: 48 x 17 x 8mm
Package contents:
1x 2.4GHz A..
€2.00
Ex Tax:€1.65

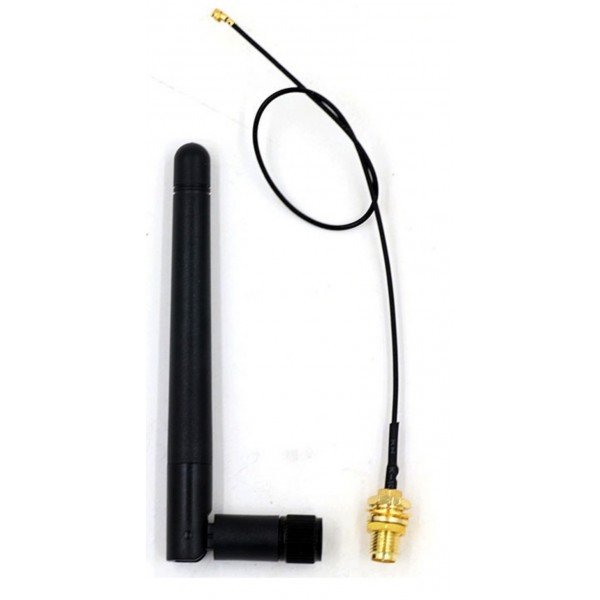

Model: 2.4GHZANTSMAUFL5DBI
An antenna for, for example, Wi-Fi or Bluetooth.
Specifications:
Gain: 5dBi
Impedance: 50Ω
Frequency range: 2400-2500MHz
Connector: uFL (I-PEX) female or SMA male
Orientation: Adjustable
Dimensions: 197 x 13 x 13mm
Package con..
€2.50
Ex Tax:€2.07
Model: 2.4GHZANTSMAUFL
Specifications:
Connector type: uFL (I-PEX)
Amplification: >3dBi
Impedance: 50 Ohm
Frequency range: 2400MHz - 2500MHz
Maximum input power: 50W..
€2.00
Ex Tax:€1.65
Model: 2.4GHZANTUFL
Specifications:
Connector type: uFL (I-PEX)
Amplification: 3dBi
Impedance: 50 Ohm
Frequency range: 2400MHz - 2483MHz
Total length: 10-15cm
Note: It may be that the black cover is shorter than shown in the image, however, this does ..
€1.50
Ex Tax:€1.24
Model: 433MHZANT
This spiralwound 433MHz antenna can perfectly send or receive a nice signal. And they are much more compact than the long monopole antennas!..
€0.50
Ex Tax:€0.41
Model: 433MHZANT-7MM
This spiralwound 433MHz antenna can perfectly send or receive a nice signal. And they are much more compact than the long monopole antennas!..
€0.50
Ex Tax:€0.41
Model: 433MHZANTSMASMALL90
Specifications:
Gain: 3dBi
Impedance: 50Ω
Frequency range: 423-443MHz
Connector: SMA male
Orientation: 90 degrees
Dimensions: 48 x 17 x 8mm
Package contents:
1x 433MHz Antenna..
€2.00
Ex Tax:€1.65
Model: 433MHZANTUFL
This spiral shaped 433MHz antenna is built as a spring and has an uFL (I-PEX) connector.
Specifications:
Length of the antenna: 26mm
Connector type: uFL (I-PEX)
Gain: 3 dBi
Impedance: 50 Ohm
Frequency: 433MHz
Diameter: 4.2 mm..
€1.50
Ex Tax:€1.24
Model: FMAMANTEXT
This FM/AM antenna is extendable and can be tilted.
In addition, it has a hole with which it can be mounted.
Dimensions:
Length of antenna (extended): ~230mm
Diameter: 6mm
For other dimensions, see the images..
€2.50
Ex Tax:€2.07

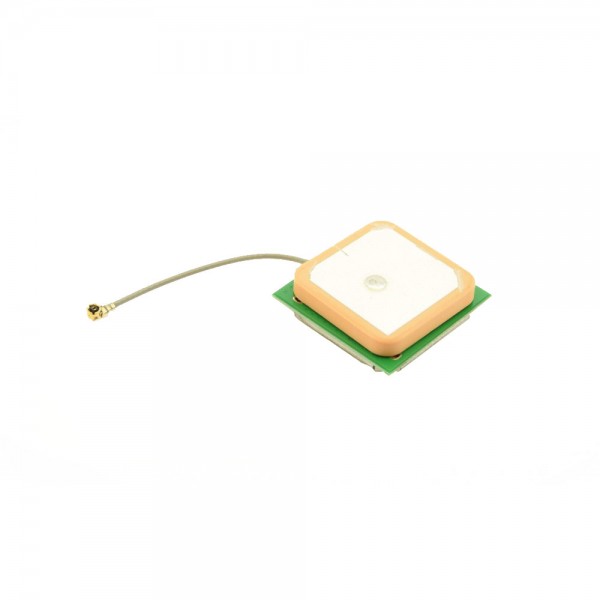

Model: GPSANTUFLPCB
Specifications:
Connector type: uFL (I-PEX)
Gain: 3dBi
Voltage: 3-5V DC
Impedance: 50 Ohm
Frequency range: CF 1575 MHz (+/- 30 MHz)
Dimensions: 28x28x8.5mm
Cable length: ~5cm..
€3.50
Ex Tax:€2.89
Model: GSMANTQBHELIX
Specifications:
Gain: 2-3dBi
Impedance: 50 Ohm
Frequency range: 824MHz - 960 MHz ofr1710 MHz - 1990MHz
Length total: 24mm
Diameter: 5mm..
€0.50
Ex Tax:€0.41

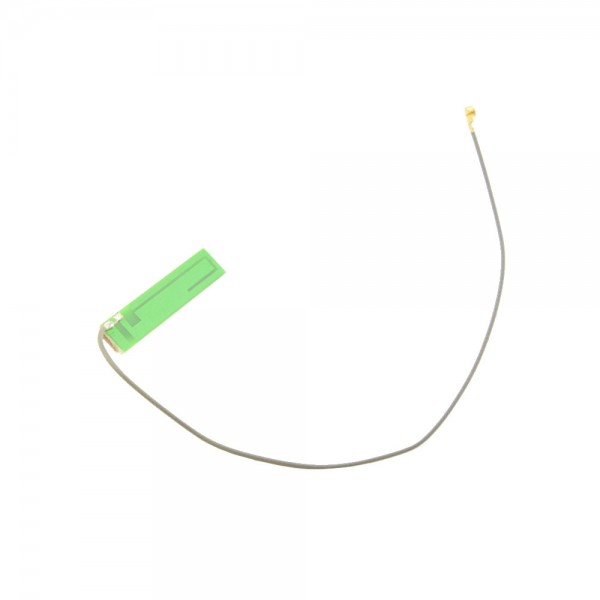

Model: GSMPCBANTQBUFL
Specifications:
Connector type: uFL (I-PEX)
Gain: 3dBi
Impedance: 50 Ohm
Frequency range: 800MHz - 960 MHz of 1710 MHz - 2170MHz
Length total: 15cm
Adhesive strip for mounting..
€0.75
Ex Tax:€0.62
Model: TAO-FXP611.07.0092C
An antenna from Taoglas that is suitable for GNSS signals...
€23.00
Ex Tax:€19.01
Model: TAO-FXUB63.07.0150C
An antenna from Taoglas with high quality and a very wide frequency range...
€11.50
Ex Tax:€9.50
Showing 1 to 22 of 22 (1 Pages)
