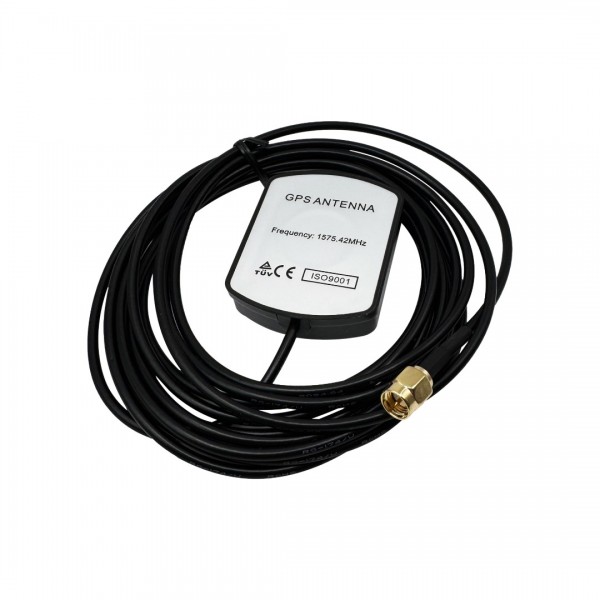

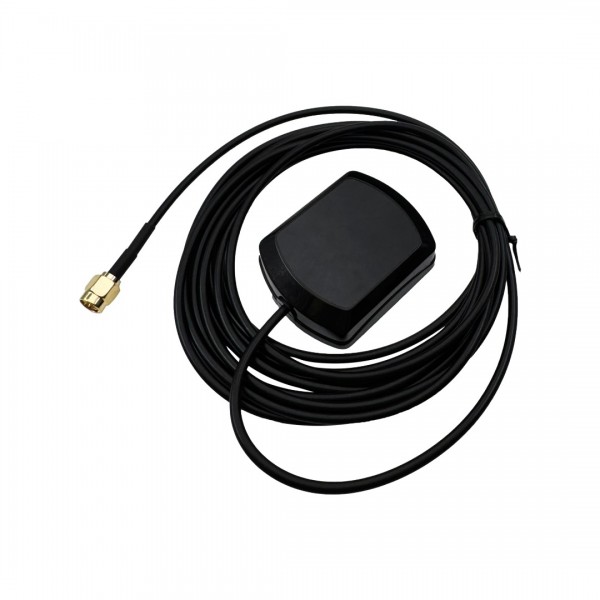

JCA001 Active GNSS-GPS Antenna - 3m - SMA

JCA001 Active GNSS-GPS Antenna - 3m - SMA
JCA001 Active GNSS-GPS Antenna - 3m - SMA
JCA001 Active GNSS-GPS Antenna - 3m - SMA
JCA001 Active GNSS-GPS Antenna - 3m - SMA
JCA001 Active GNSS-GPS Antenna - 3m - SMA
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006685
€5.00
Ex Tax: €4.13

An antenna from JC Antenna.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over JCA001 Active GNSS-GPS Antenna - 3m - SMA

This product has 0 review(s) in total.

Specifications

General
Brand JC Antenna
Manufacturer model/SKU JCA001
Norm conformity RoHS
Maximum operating humidity [%R.H.] 95
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Enclosure
General physical appearance
Main color Black
Weight [g] 61
Dimension X [mm] 49
Dimension Y [mm] 39
Dimension Z [mm] 15
Water and dust protection IP66
Mounting options Magnets
Form factor Module (general)
Wireless communication
Supported GNSS systems GPS
Beidou
GLONASS
Galileo
QZSS
Connectors
Connector type(s) SMA male
Wire/cable
Wire/cable length [m] 3
Antenna
Active/passive Active
Maximum gain [dBi] 2
Impedance [Ω] 50
Radiation direction Omnidirectional
Enclosure
Material ABS
Package contents
Package contents 1x Antenna
