Name: JCD402 433MHz Antenna - SMA - JCD402-SMA
SKU: 006677
Price: 1.75 EUR
Availability: InStock

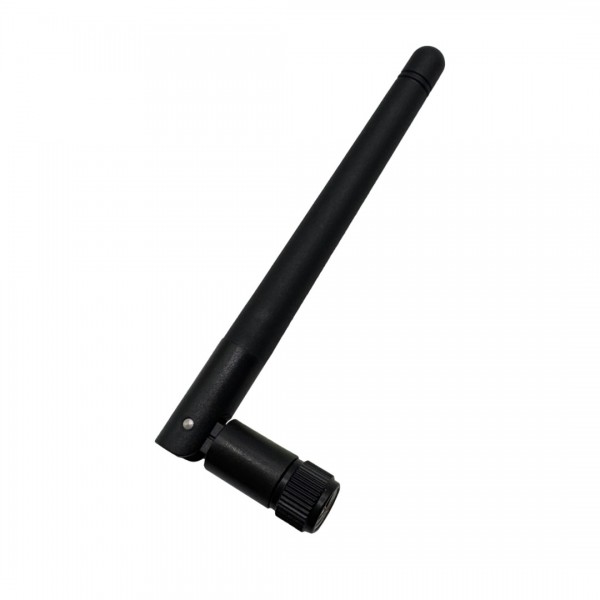

JCD402 433MHz Antenna - SMA

Based on 0 review(s) - Write a review

€1.75

Ex Tax: €1.45

10 or more €1.60

20 or more €1.50

50 or more €1.45

100 or more €1.40

200 or more €1.35

500 or more €1.30

1000 or more €1.25

2000 or more €1.22

5000 or more €1.20

Qty

Add to Cart

Add to wishlist

1000+ pieces in stock

An antenna from JC Antenna.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: JCD402 433MHz Antenna - SMA , JCD402-SMA , 433MHz

General
Brand	JC Antenna
Manufacturer model/SKU	JCD402
Norm conformity	RoHS
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	11
Dimension X [mm]	10
Dimension Y [mm]	10
Dimension Z [mm]	117
Mounting options	Screw thread
Form factor	Individual component
Connectors

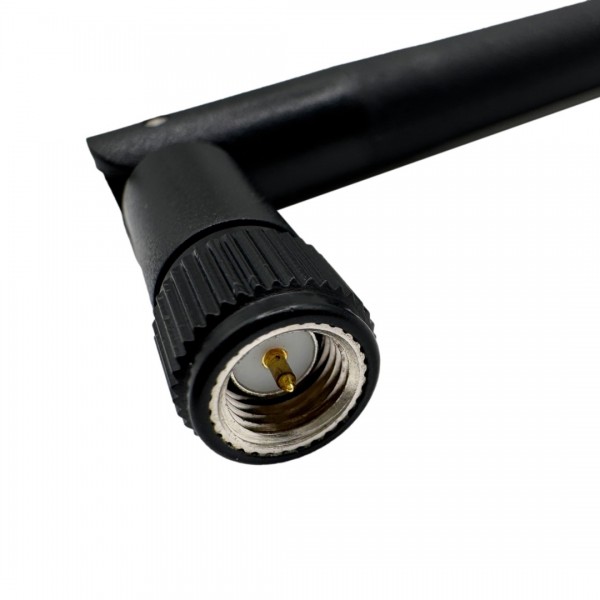

Connector type(s)	SMA male
Orientation	Adjustable
Antenna
Frequency band(s)	433MHz (e.g. RF, LoRa)
Maximum gain [dBi]	2
Impedance [Ω]	50
Radiation direction	Omnidirectional
Package contents
Package contents	1x Antenna
