2.4GHz 5GHz Wi-Fi Antenna - SMA-uFL

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This antenna is compatible with, amongst others, the Raspberry Pi Compute Module 4 and supports the 2.4G and 5G Wi-Fi frequency bands.

Please login or register to review

This product has 0 review(s) in total.

Tags: 2.4GHz 5GHz Wi-Fi Antenna - SMA-uFL , WS-18944 , 2.4GHz

General
Brand	No brand

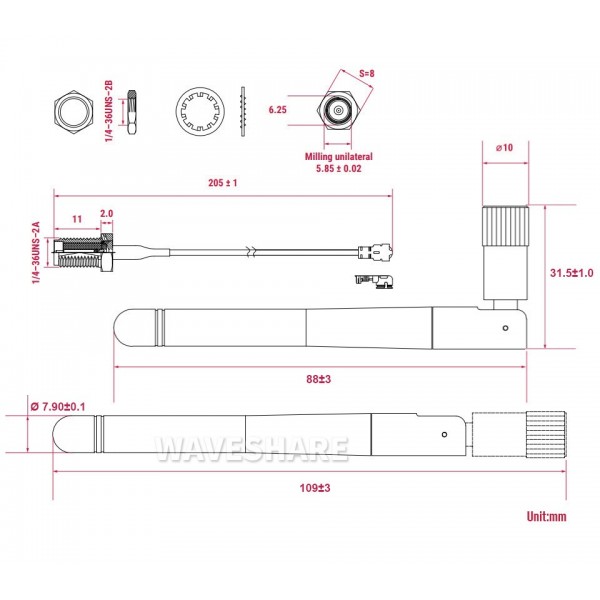

General physical appearance
Main color	Black
Weight [g]	11 (whole kit)
Dimension X [mm]	10
Dimension Y [mm]	10
Dimension Z [mm]	109 (±3)
Material	TPE-E
Mounting options	Screw thread
Form factor	Individual component
General electrical properties
Maximum power [W]	10
Connectors
Connector type(s)	SMA male IPEX MHF 1/uFL female
Wire/cable
Impedance [Ω]	50
Wire/cable length [m]	0.2
Antenna
Frequency band(s)	2.4GHz (e.g. Wi-Fi, Bluetooth, Zigbee) 5GHz (e.g. Wi-Fi)
Maximum gain [dBi]	2 (±0.5)
Impedance [Ω]	50
Radiation direction	Omnidirectional
Package contents
Package contents	1x Antenna 1x SMA female to uFL adapter cable 1x Nut 1x Spring washer 1x Tooth lock washer
