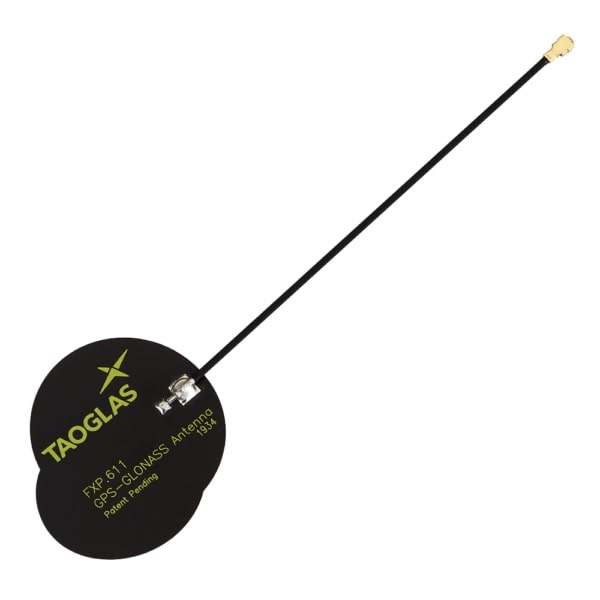

Taoglas FXP611 GNSS Antenna with uFL Connector
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006583
€23.00
Ex Tax: €19.01
Your shopping cart is empty!
An antenna from Taoglas that is suitable for GNSS signals.
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 006583_FXP611.07.0092C_datasheet.pdf
General | |
Brand | Taoglas |
Manufacturer model/SKU | FXP611.07.0092C |
Norm conformity | RoHS |
Minimum operating humidity [%R.H.] | 40 |
Maximum operating humidity [%R.H.] | 95 |
Minimum operating temperature [°C] | -40 |
Maximum operating temperature [°C] | 85 |
General physical appearance | |
Main color | Black |
Weight [g] | 1 |
Dimension X [mm] | 38 |
Dimension Y [mm] | 37 |
Dimension Z [mm] | 0.2 |
Mounting options | Adhesive layer |
Form factor | Individual component |
General electrical properties | |
Maximum power [W] | 5 |
Wireless communication | |
Supported GNSS systems | GPS Beidou GLONASS Galileo QZSS |
Connectors | |
Connector type(s) | IPEX MHF 1/uFL female |
Wire/cable | |
Wire/cable length [m] | 0.09 |
Antenna | |
Active/passive | Active |
Maximum gain [dBi] | 3 |
Impedance [Ω] | 50 |
Radiation direction | Omnidirectional |
Package contents | |
Package contents | 1x Antenna |
