Name: Taoglas FXUB63 5G-4G Antenna with uFL Connector - TAO-FXUB63.07.0150C
SKU: 006560
Price: 11.5 EUR
Availability: InStock

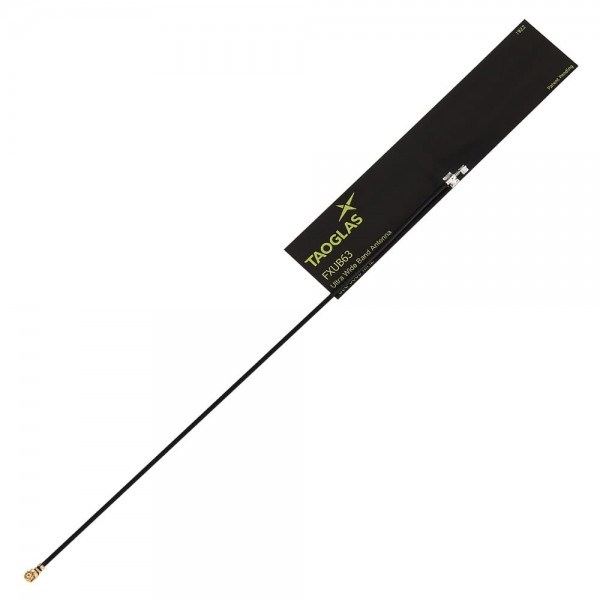

Taoglas FXUB63 5G-4G Antenna with uFL Connector

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

An antenna from Taoglas with high quality and a very wide frequency range.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Taoglas FXUB63 5G-4G Antenna with uFL Connector , TAO-FXUB63.07.0150C , Telecommunication

General
Brand	Taoglas
Manufacturer model/SKU	FXUB63.07.0150C
Norm conformity	RoHS
Minimum operating humidity [%R.H.]	40
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	96
Dimension Y [mm]	21
Dimension Z [mm]	0.2
Mounting options	Adhesive layer
Form factor	Individual component
General electrical properties
Maximum power [W]	5
Connectors
Connector type(s)	IPEX MHF 1/uFL female
Wire/cable
Wire/cable length [m]	0.15
Antenna
Frequency band(s)	850MHz (LTE B5, B18, B26, B89) 900MHz (LTE B8, B81, B93, B94, B100, B106) 1800MHz (LTE B3, B80) 1900MHz (LTE B2, B25, B39, B98, B101) 2.4GHz (e.g. Wi-Fi, Bluetooth, Zigbee) 600MHz (LTE B71, B105) 700MHz (LTE B12, B13, B14, B28, B29, B67, B83, B85, B109) 1500MHz (LTE B50, B51, B74, B75, B76, B91, B92, B93, B94, B109) 1600MHz (LTE B24, B54, B99) 1700MHz (LTE B66, B86) 2100MHz (LTE B1, B34, B65, B66, B84, B95) 2300MHz (LTE B30, B40, B97) 2500MHz (LTE B41, B90) 2600MHz (LTE B7, B38) 3500MHz (LTE B48, B78) 3700MHz (LTE B77) 4900MHz (LTE B79) 2400MHz (LTE B53) 5200MHz (LTE B46) 5900MHz (LTE B47) 800MHz (LTE B20, B82, B91, B92) 2000MHz (LTE B70)
Maximum gain [dBi]	5
Impedance [Ω]	50
Radiation direction	Omnidirectional
Package contents
Package contents	1x Antenna
