Name: Small Vibration DC Motor 1.8-6V - VIBRATEDCMOTOR
SKU: 000579
Price: 1 EUR
Availability: Discontinued

Small Vibration DC Motor 1.8-6V

Discontinued

Small Vibration DC Motor 1.8-6V

Availability: Discontinued
SKU: 000579

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

10 or more €0.95

20 or more €0.90

50 or more €0.85

100 or more €0.80

200 or more €0.75

500 or more €0.70

1000 or more €0.65

1500 or more €0.60

Qty

Add to Cart

Add to wishlist

Not in stock

Description
Reviews

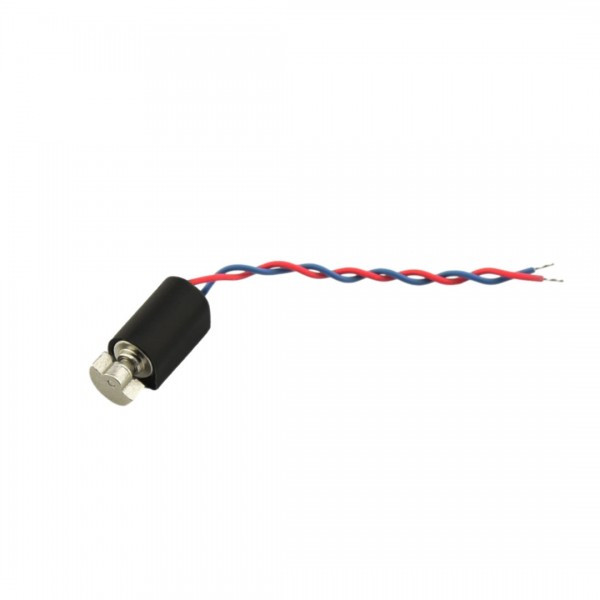

A small vibrating DC motor. This motor is in a rubber piece that is flat on one side for flat mounting with, for example, glue.

Note: The thin wires can vibrate and deattach if the motor and the cables are not properly secured in your setup. Use hot glue or other glue to protect these thin wires against vibrations.

Note: We may deliver another version with a square housing instead of a flat and rounded housing as shown.

Please login or register to review

Reviews Over Small Vibration DC Motor 1.8-6V

Average Rating:

This product has 0 review(s) in total.

Tags: Small Vibration DC Motor 1.8-6V , VIBRATEDCMOTOR , Vibration Motors

Specifications

General
Brand	No brand
Features	Vibration motor
General physical appearance
Main color	Mixed
Weight [g]	1
Dimension X [mm]	4.8
Dimension Y [mm]	4.8
Dimension Z [mm]	7.5
Form factor	Individual component
General electrical properties
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	49 (@2V) 78 (@3V) 108 (@4V) 126 (@5V)
Actuator
Actuator type	Brushed DC motor
Phase resistance [Ω]	31
Maximum speed [RPM]	6200
Connectors
Motor connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.03
Package contents
Package contents	1x Vibration motor
