Name: Small Vibration DC Motor 2.0-3.4V - HYY4Z08V000-L45-D2
SKU: 007055
Price: 1 EUR
Availability: InStock

Small Vibration DC Motor 2.0-3.4V

Availability: Directly available from warehouse in Eindhoven
SKU: 007055

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

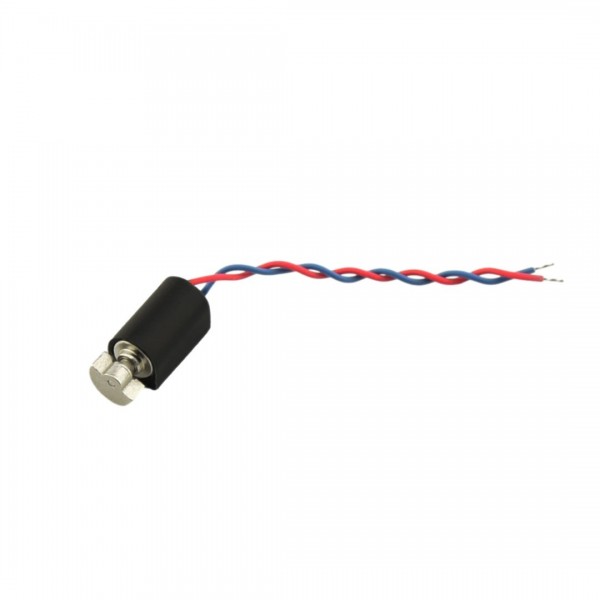

A small vibrating DC motor. This motor is in a rubber piece that is flat on one side for flat mounting with, for example, glue.

Note: The thin wires can vibrate and deattach if the motor and the cables are not properly secured in your setup. Use hot glue or other glue to protect these thin wires against vibrations.

Note: We may deliver another version with a square housing instead of a flat and rounded housing as shown.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Small Vibration DC Motor 2.0-3.4V

Average Rating:

This product has 0 review(s) in total.

Datasheet: 007055_Data_Sheet_of_4Z08V000-L25（D2）Vibration_Motor.pdf

Tags: Small Vibration DC Motor 2.0-3.4V , HYY4Z08V000-L45-D2 , Vibration Motors

Specifications

General
Brand	HYY
Features	Vibration motor
General physical appearance
Main color	Mixed
Weight [g]	1
Dimension X [mm]	4.8
Dimension Y [mm]	4.8
Dimension Z [mm]	11
Form factor	Individual component
General electrical properties
Maximum supply voltage [V DC]	3.4
Indication average current consumption [mA]	90 (@3.4V)
Actuator
Actuator type	Coreless DC motor
Maximum speed [RPM]	12000 (±1000)
Connectors
Motor connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.03
Package contents
Package contents	1x Vibration motor
