Closed Vibration DC Motor 3.3V

Closed Vibration DC Motor 3.3V
2-4 Weeks
Closed Vibration DC Motor 3.3V
  • Availability: 2-4 Weeks
  • SKU: 007058
€1.75
Ex Tax: €1.45

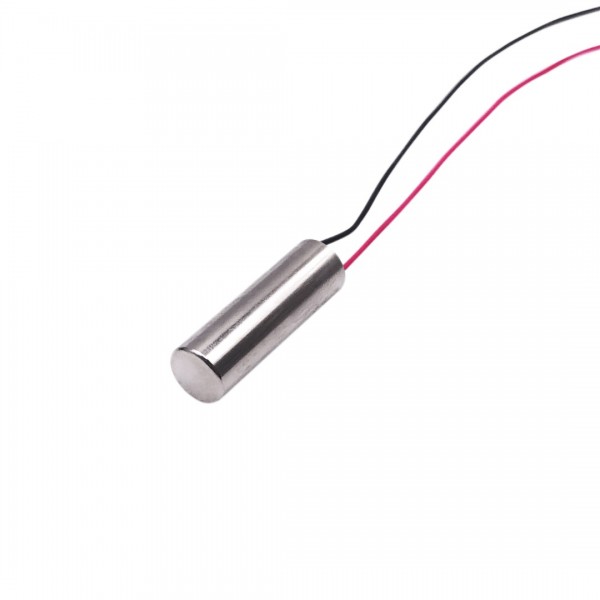

A small vibration (DC) motor. This motor is incorporated in a cylindrical housing.

Note: The thin wires can vibrate loose if the motor and cabling are not properly secured in your setup. Use hot glue or other glue to protect these thin wires from loosening by vibration.

Note: Datasheet in the "Downloads" tab is for the motor without housing.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Closed Vibration DC Motor 3.3V

This product has 0 review(s) in total.

Specifications

General
Brand HuanChi
Features Vibration motor
General physical appearance
Main color Gray/silver
Weight [g] 5
Dimension X [mm] 7.5
Dimension Y [mm] 7.5
Dimension Z [mm] 24
Form factor Individual component
General electrical properties
Maximum supply voltage [V DC] 3.3
Minimum recommended supply current [A] 0.2
Indication average current consumption [mA] 60
(@3.3V)
Actuator
Actuator type Brushed DC motor
Phase resistance [Ω] 16
Maximum speed [RPM] 12000
Connectors
Motor connector(s) Loose wire
Wire/cable
Wire/cable length [m] 0.1
Package contents
Package contents 1x Vibration motor
