M5Stack M5StickC Plus - ESP32 Development Board

M5StickC Plus is a development board based on an ESP32 chipset that supports BLE 4.2 and WiFi. Like the standard M5StickC, it has integrated sensors and modules such as infrared, RTC, microphone, LED, IMU, PMU, buttons, and so on. Improvements over the M5StickC are a larger screen (1.14 inch, 135*240 TFT LCD screen), buzzer, more stable hardware design and a higher battery capacity of 120mAh. In addition, the HAT's and UNIT's that you used on your normal M5StickC are also suitable for the new M5StickC Plus.

The board has a USB-C connection with which it can be programmed and/or powered. UIFlow, MicroPython and Arduino programming languages are supported.

• Input voltage: 3.3V (via 3V3 pin) or 5V DC (via USB-C port or 5V pin)
• GPIO voltage: 3.3V
• Input current: max 500mA
• Chipset: ESP32 PICO D4 (240MHz dual core processor)
  • Flash memory: 4MB
  • SRAM: 520KB
  • Built-in Wi-Fi
  • Built-in Bluetooth (BLE 4.2)
• Programming languages: UIFlow, MicroPython, Arduino
• Input interface: USB-C, GROVE (I2C+I/0+UART)
• Buttons: A (bottom screen), B (right side), Power button (left side).
• Screen: 1.14 inch, 135x240 TFT LCD
• Battery*: 120mAh
• Built-in buzzer
• Built-in microphone: SPM1423
• Built-in IR transmitter
• Built-in 6-axis IMU: MPU6886
• Built-in red LED
• Built-in RTC: BM8563
• Built-in power management IC: AXP192
• Operational temperature: 0°C to 40°C
• Size: 48.2 x 25.5 x 13.7 mm
• Casing: Orange plastic

*Note: The battery may be completely empty upon delivery, before the board works it may need to be partially charged.

Use on/off button (Button on left side of module):

• Power on: Press the power button for 2 seconds
• Power off: Press the power button for 6 seconds

Package contents:

• 1x M5StickC Plus

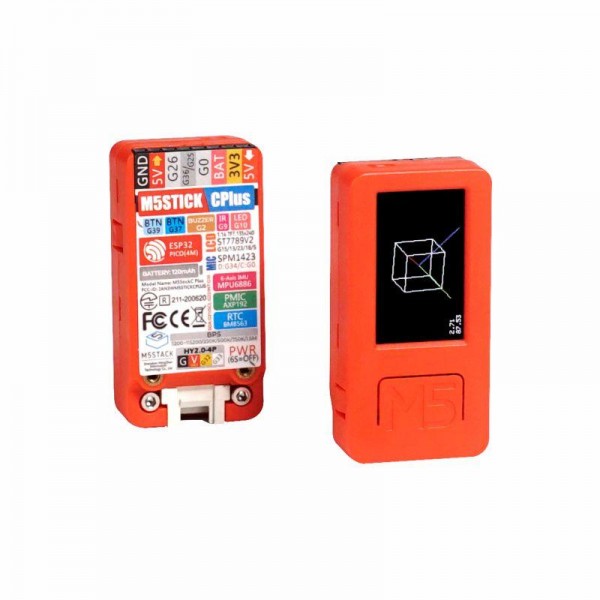

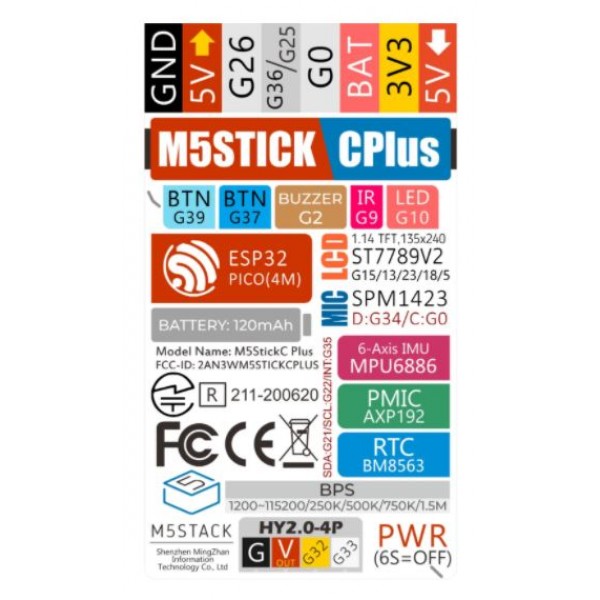

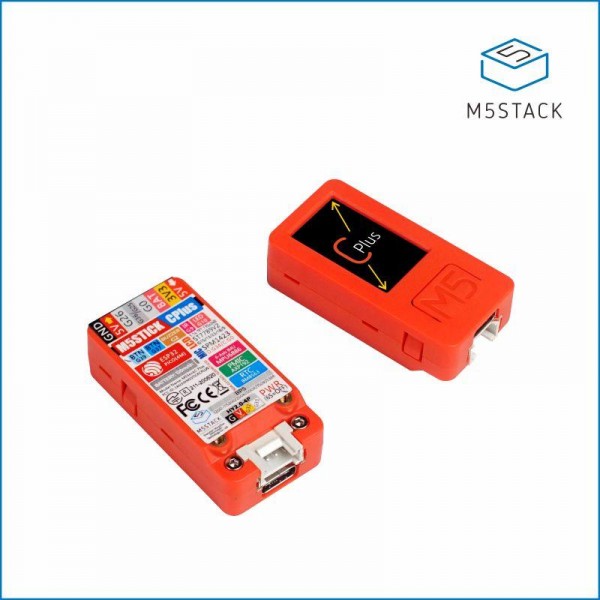

See the images and the page below for the pin layout.

For more information and to get started with the board see: M5StickC Plus.
