M5Stack M5StickS3 - ESP32-S3 Development Board
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007696
€22.00
Ex Tax: €18.18
10 or more €21.75
20 or more €21.50
50 or more €21.25

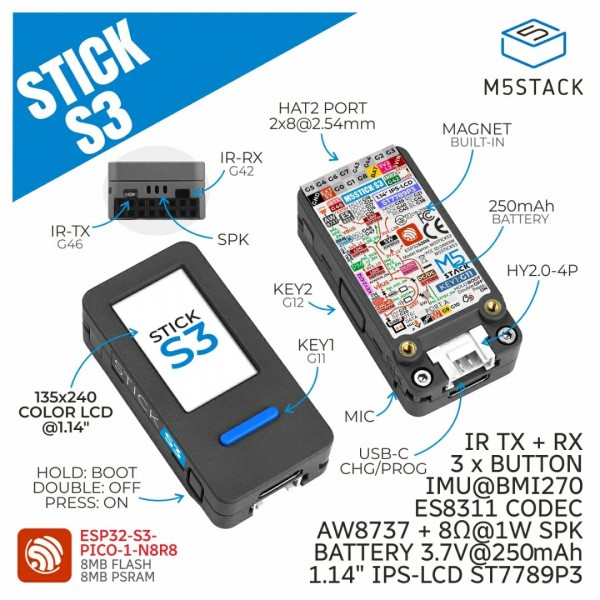

A development board from M5Stack based on a ESP32-S3-PICO-1 microcontroller by Espressif with multiple sensors. Thanks to the built-in USB connector, it is easy to program. Things can be shown on the built-in TFT display. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth). Finally, the board has a rechargeable Li-Po battery, which allows it to be used even when there's no power nearby.
See the following page for more information: Wiki
Report this review.
Tags:
M5Stick
, M5Stick
, M5Stack M5StickS3 - ESP32-S3 Development Board
, 007696
, M5Stack
, K150
, Display
, Battery
, Enclosure
, Gyroscope
, Microphone
, Battery charger
, Speaker/buzzer
, Audio amplifier
, Acceleration sensor
, Microcontroller (MCU)
, Battery protection circuit
, Programmable button(s)
, SPI
, GPIO
, ADC
, I2C
, I2S
, PWM
, Native USB
, UART
, USB CDC
, IR
, Wi-Fi
, Bluetooth
Specifications
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | K150 |
| Norm conformity | CE RoHS |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Features | Battery Display Enclosure Gyroscope Microphone Speaker/buzzer Audio amplifier Battery charger Acceleration sensor Microcontroller (MCU) Programmable button(s) Battery protection circuit |
| General physical appearance | |
| Main color | Gray/silver |

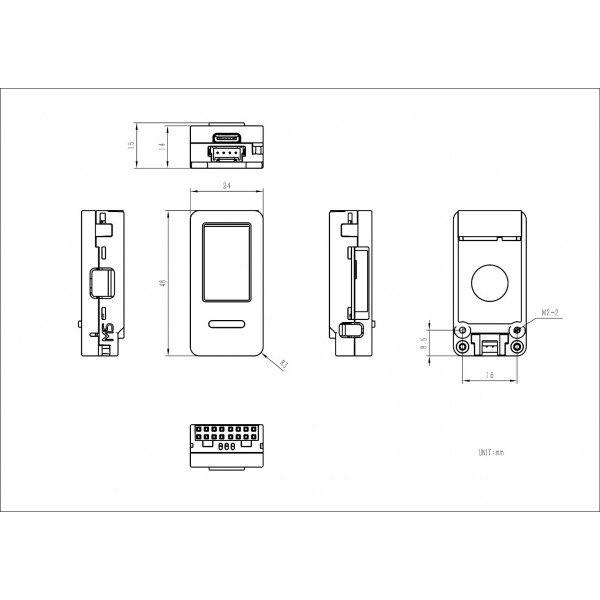

| Weight [g] | 20 |
| Dimension X [mm] | 48 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 15 |
| Mounting options | Magnets Screw thread |
| Thread size | M2 |
| Form factor | Module (general) M5Stack Stick layout/HAT |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-S3-PICO-1 |
| Maximum clock frequency [MHz] | 240 |
| Number of cores | 2 |
| Internal memory | |
| SRAM [KB] | 512 |
| PSRAM [MB] | 8 |
| Flash memory [MB] | 8 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC Native USB |

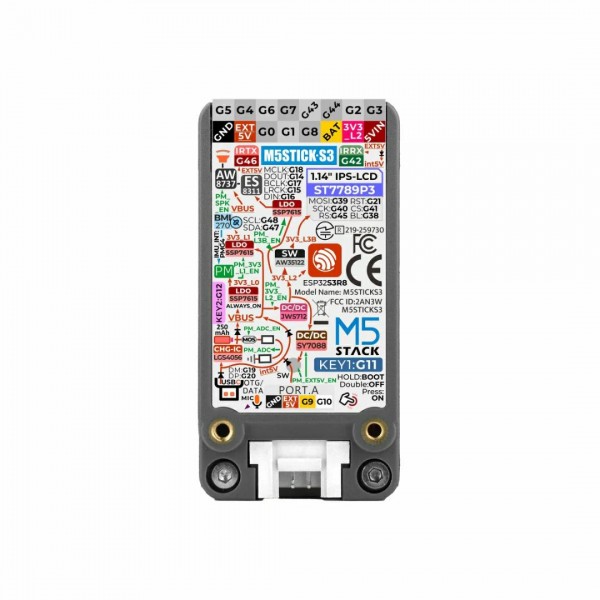

| Available GPIO pins | 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 43, 44 |
| Number of IO-pins | 13 |
| Maximum available hardware PWM channels | 13 |
| Maximum available analog input pins (ADC) | 10 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 3 |
| Maximum available hardware I2C interfaces | 2 |
| Maximum available hardware SPI interfaces | 2 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | IR Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-S3-PICO-1 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-S3-PICO-1 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| IR receiver/transmitter | Receiver Transmitter |
| Display | |
| Type | TFT |
| Driver | ST7789P3 |
| Screen diagonal [inch] | 1.14 |
| Number of pixels long side | 240 |
| Number of pixels short side | 135 |
| Display shape | Rectangular |
| Pixel colors | RGB |
| Acceleration sensor | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±g] | 16 |
| Maximum resolution [bit] | 16 |
| Gyroscope | |
| Sensor chip/SoC | BMI270 |
| Degrees of freedom (DOF) | 3 |
| Maximum measuring range [±°/s] | 2000 |
| Maximum resolution [bit] | 16 |
| Sound sensor | |
| Sensor (chip(s)) | ES8311 MSM381A3729H9BPC |
| Type | Microphone |
| Sensor technology | MEMS |
| Audio amplifier | |
| Amplifier chip | AW8737 |
| Amplifier class | K |
| Number of (normal) channels | 1 |
| Speaker | |
| Speaker type | Standard |
| Impedance [Ω] | 8 |
| Maximum nominal (RMS) power [W] | 1 |
| Battery circuit | |
| Battery charger chip/SoC | LGS4056H |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 190 |
| Adjustable charging current | No |
| Protection circuit | Yes (in battery) |
| Safety features | Overcurrent Overvoltage Undervoltage Short circuit |
| Battery | |
| Chemistry | Li-Po |
| Rechargeable | Yes |
| Typical capacity [mAh] | 250 |
| Minimum cell voltage [V] | 3 |
| Nominal cell voltage [V] | 3.7 |
| Maximum cell voltage [V] | 4.2 |
| Connectors | |
| Power supply connector(s) | USB-C female HY2.0 (Grove) male Pin header female (2.54mm) |
| IO-connector(s) | USB-C female HY2.0 (Grove) male Pin header female (2.54mm) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna |
| Enclosure | |
| Material | Plastic (unknown material) |
| Package contents | |
| Package contents | 1x M5StickS3 |
