  • Availability: Discontinued
  • SKU: 007279
Based on 0 review(s) - Write a review
€32.25
Ex Tax: €26.65
Add to Cart
Add to wishlist

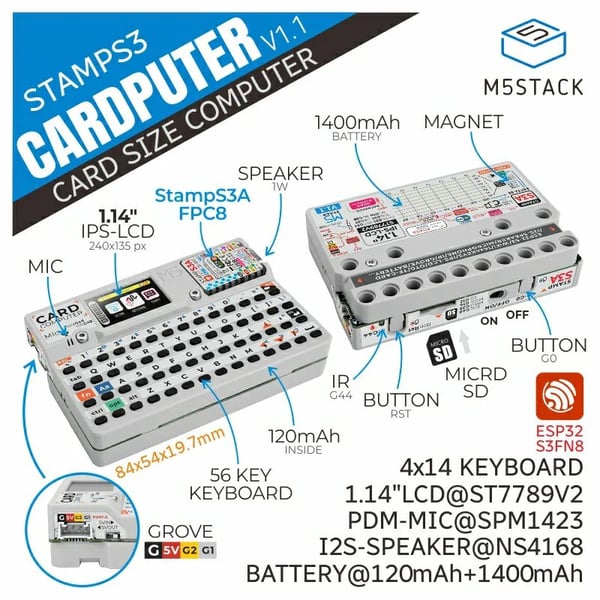

The M5Cardputer V1.1 from M5Stack is a programmable smart mini-computer powered by the M5StampS3A. This compact device features a built-in 1.14 inch IPS-TFT display, a speaker, a microphone, a 56-key keyboard, and an integrated battery. You can also connect additional modules/sensors to the Grove connector.

This version is based on the M5Stamp-S3A, which has an improved antenna and lower poser consumption than the Stamp-S3.

See the following page for more information: Wiki

Please login or register to review
Tags: M5Stack M5Cardputer V1.1 - ESP32-S3 Card Sized Computer with 1.14 inch Display , 007279 , M5Stack , K132-V11 , Battery charger , Display , Microcontroller (MCU) , SD-card adapter , Audio amplifier , Battery protection circuit , Enclosure , Microphone , Battery , Speaker/buzzer , Keyboad/keypad , Programmable button(s) , Digital LED(s) , I2C , Native USB , UART , PWM , ADC , GPIO , USB CDC , Wi-Fi , Bluetooth , IR

Specifications

General
Brand M5Stack
Manufacturer model/SKU
Norm conformity CE
RoHS
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Battery
Display
Enclosure
Microphone
Digital LED(s)
Keyboad/keypad
Speaker/buzzer
Audio amplifier
Battery charger
SD-card adapter
Microcontroller (MCU)
Programmable button(s)
Battery protection circuit
General physical appearance
Main color Gray/silver
Weight [g] 90
Dimension X [mm] 84
Dimension Y [mm] 54
Dimension Z [mm] 20
Mounting options Magnets
LEGO (compatible) holes
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Maximum IO-pin source current [mA] 40
Maximum IO-pin sink current [mA] 28
MCU
Manufacturer Espressif
Chip series ESP32-S3
Maximum clock frequency [MHz] 240
Number of cores 2
Internal memory
SRAM [KB] 512
PSRAM [MB] 0
Flash memory [MB] 8
EEPROM type Emulated
Communication
Hardware interface(s) ADC
I2C
PWM
GPIO
UART
USB CDC
Native USB
Number of IO-pins 2
Maximum available hardware PWM channels 2
Maximum available analog input pins (ADC) 2
Maximum available analog output pins (DAC) 0
Maximum available hardware UART interfaces 1
Maximum available hardware I2C interfaces 1
Maximum available hardware SPI interfaces 0
USB to serial converter Integrated into microcontroller
Supported SD card size Micro SD
Wireless communication
Interface(s) IR
Wi-Fi
Bluetooth
Wi-Fi chip/SoC ESP32-S3
Wi-Fi frequency [GHz] 2.4
Bluetooth chip/SoC ESP32-S3
Bluetooth version 5.0
Supported Bluetooth standard(s) LE
IR receiver/transmitter Transmitter
Display
Type IPS
Driver ST7789V2
Screen diagonal [inch] 1.14
Number of pixels long side 240
Number of pixels short side 135
Display shape Rectangular
Pixel colors RGB
Light source
Type LED
LED (driver) chip WS2812B
Light color RGB
Sound sensor
Sensor (chip(s)) SPM1423
Type Microphone
Sensor technology MEMS
Audio amplifier
Amplifier chip NS4168
Amplifier class D
Number of (normal) channels 1
Speaker
Speaker type Standard
Active/passive Passive
Impedance [Ω] 8
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 57
Battery circuit
Battery charger chip/SoC TP4057
Supported battery chemistry Li-Po
Li-ion
Maximum charging voltage [V] 4.2
Maximum charging current [mA] 300
Adjustable charging current No
Protection circuit Yes (in battery)
Safety features Polarity
Overcurrent
Overvoltage
Undervoltage
Short circuit
Battery
Chemistry Li-Po
Rechargeable Yes
Typical capacity [mAh] 1520
Maximum cell voltage [V] 4.2
Connectors
Power supply connector(s) USB-C female
HY2.0 (Grove) male
IO-connector(s) USB-C female
HY2.0 (Grove) male
Wi-Fi/Bluetooth antenna connector Built-in antenna
Enclosure
Material Plastic (unknown material)
Package contents
