M5Stack Atom PoE Kit - W5500 - including M5Atom Lite

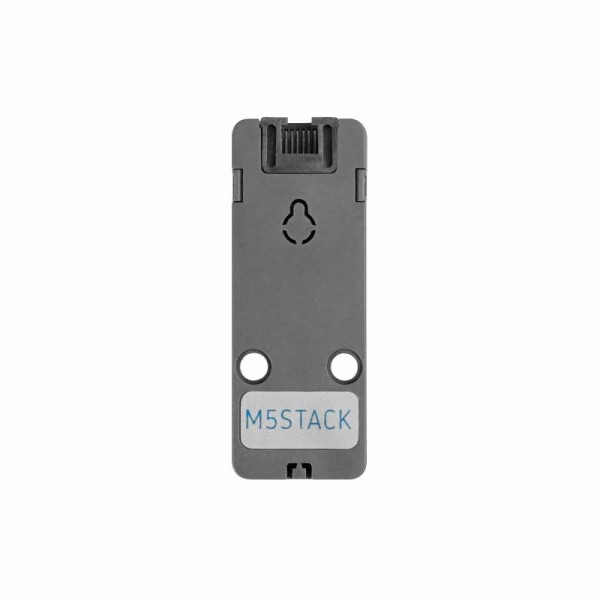

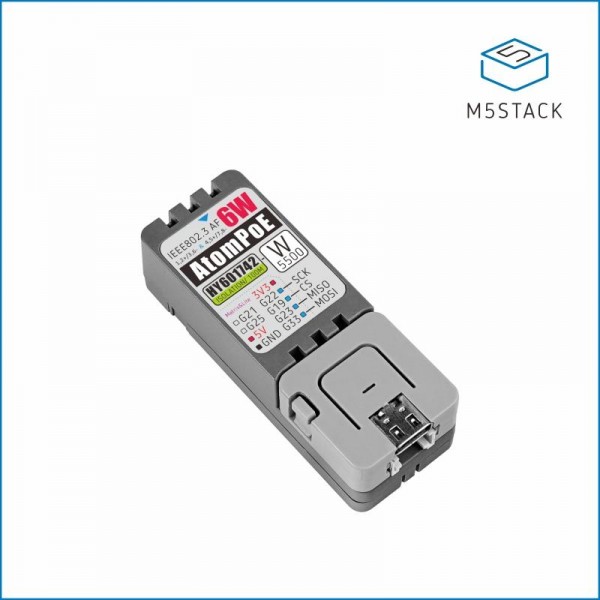

The M5Stack Atom PoE is a kit consisting of two parts: An ethernet module that supports Power over Ethernet (PoE) and an M5Stack Atom Lite.

Specifications ethernet module:

• Ethernet chip: W5500
• Maximum output power PoE: 6W
• RJ45 connection for a standard ethernet plug
• Ethernet speed: 10Mbps/100Mbps
• Dimensions complete kit: 24 x 48 x 18mm

The Atom Lite from M5Stack is a compact development board based on an ESP32 chipset. It includes Wi-Fi, Bluetooth and a built-in push button. See the following page for more information: Atom Lite

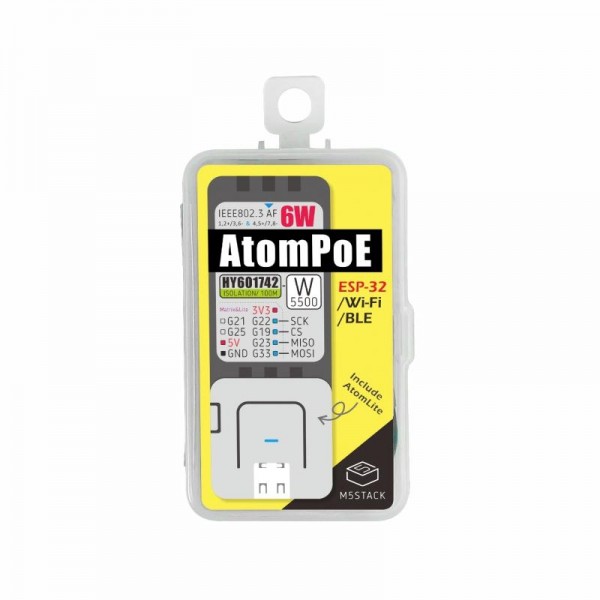

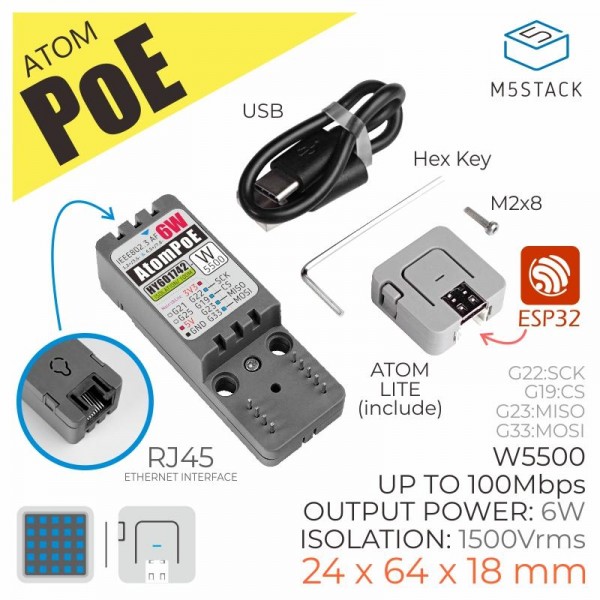

Package contents:

• 1x Atom PoE module
• 1x Atom Lite
• 1x M2*8 Bolt with internal hexagon
• 1x Allen key
• 1x USB-C cable (~20cm)

See the following page for more information: M5Stack Atom PoE.

Note: To use the PoE function, a switch or router that supports PoE or a PoE injector is required.
