M5Stack Atomic PoE Base - W5500 Ethernet

M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
M5Stack Atomic PoE Base - W5500 Ethernet
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005820
Based on 0 review(s) - Write a review
€22.00
Ex Tax: €18.18
Add to Cart
Add to wishlist

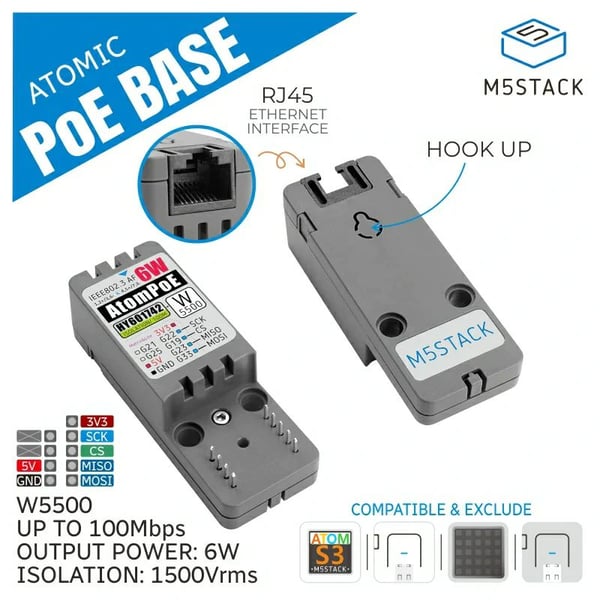

An ethernet module that supports Power over Ethernet (PoE), compatible with the M5Stack Atom development boards.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Atomic PoE Base - W5500 Ethernet

This product has 0 review(s) in total.

Tags: Ethernet , Modules , M5Stack Atomic PoE Base - W5500 Ethernet , 005820 , M5Stack , A091 , Enclosure , PoE , SPI , Ethernet

Specifications

General
Brand M5Stack
Manufacturer model/SKU
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features PoE
Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 18

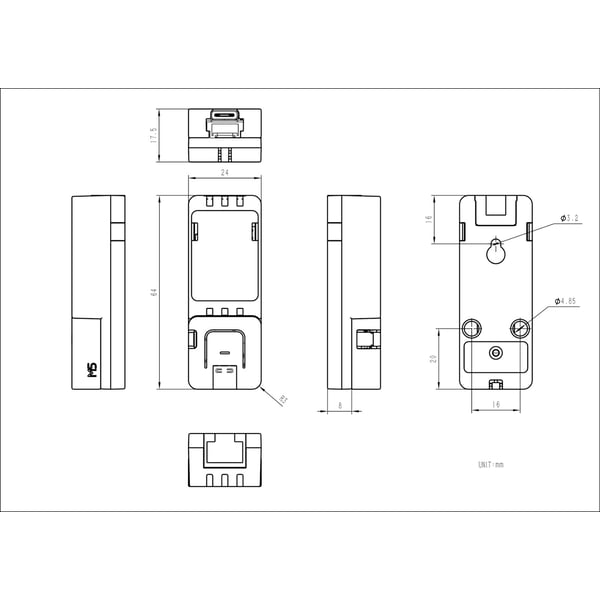

Dimension X [mm] 64
Dimension Y [mm] 24
Dimension Z [mm] 18
Mounting options LEGO (compatible) holes
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 37
Maximum supply voltage [V DC] 57
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Ethernet
Isolated communication Yes
Ethernet chip/SoC W5500
Maximum ethernet transfer speed [Mbit/s] 100
Voltage converter
Chip/SoC KTA1136
Voltage converter type Buck
Conversion DC-DC
Isolated Yes
Output voltage type Fixed
Minimum input voltage [V DC] 37
Maximum input voltage [V DC] 57
Minimum output voltage [V DC] 5
Maximum output voltage [V DC] 5
Maximum output current [A] 1.2
Maximum output power [W] 6
Safety features Temperature
Short circuit
Over voltage (input)
Connectors
Power supply connector(s) RJ45 female
IO-connector(s) RJ45 female
Pin header male (2.54mm)
Input voltage connector(s) RJ45 female
Output voltage connector(s) Pin header male (2.54mm)
Package contents
Package contents
