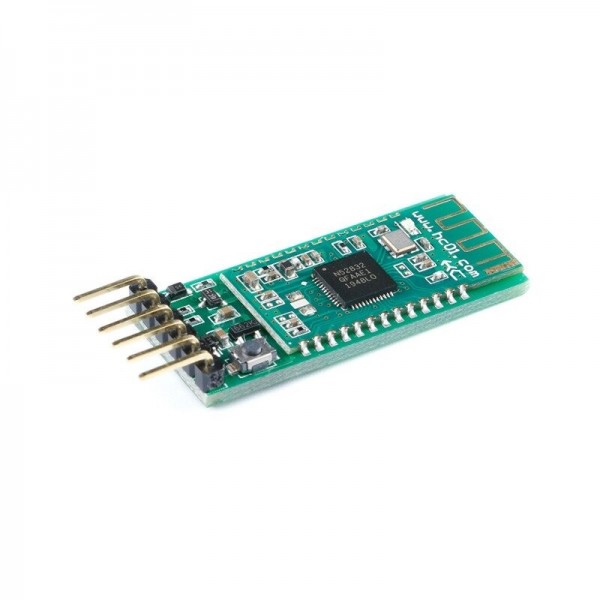

Bluetooth HC-42 module RF transceiver Master and Slave - Bluetooth 5.0 BLE

With this HC-42 bluetooth module you can easily send data serially to, for example, your phone, tablet, other (HC-42) bluetooth modules. This bluetooth module can serve as Master and Slave.

Specifications:

• Supply voltage: 3.2-6V DC
• Signal voltage: 3.2-6V
• Range: ~40m (in open air)
• LED indication present (indicates status of Bluetooth connection)
• Interface: UART (RX and TX)
• Possible baud rates in standard mode: 1200 - 230400bps
• Baud rate in standard mode: 9600 (adjustable)
• Baud rate in AT command mode: 9600
• Bluetooth version: 5.0 BLE
• Built-in antenna

Package contents:

• 1x HC-42 Bluetooth Module

For more information, see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.
