Name: ASAIR AM2122 Temperature and Humidity Sensor - AM2122
SKU: 003753
Price: 4 EUR
Availability: Discontinued

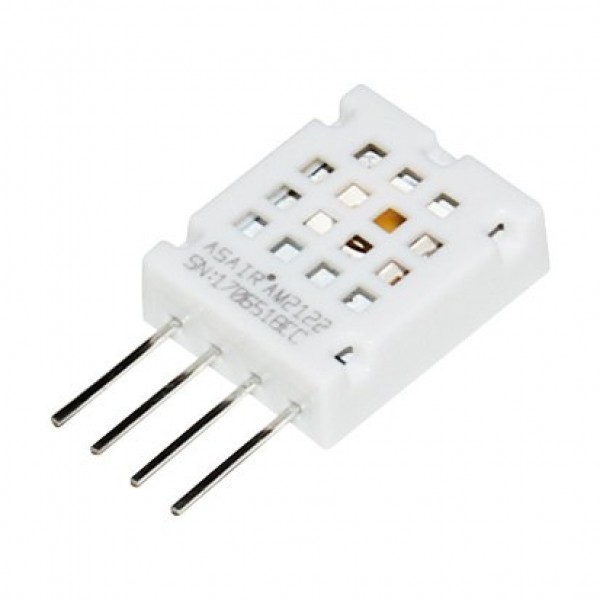

ASAIR AM2122 Temperature and Humidity Sensor

Discontinued

ASAIR AM2122 Temperature and Humidity Sensor

Based on 0 review(s) - Write a review

€4.00

Ex Tax: €3.31

Qty

Add to Cart

Add to wishlist

Not in stock

A handy temperature and humidity sensor.

Pinout (left to right from the front):

See the following page for a library for this sensor: DHTNew

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: ASAIR AM2122 Temperature and Humidity Sensor , AM2122

General
Brand	ASAIR (AOSONG)
Features	Temperature sensor Humidity sensor
General physical appearance
Main color	White
Weight [g]	1
Dimension X [mm]	15
Dimension Y [mm]	13
Dimension Z [mm]	5
Mounting options	THT
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	One-Wire
Built-in pull-up resistor(s) [kΩ]	None
Temperature sensor
Sensor (chip)	AM2122
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	80
Smallest resolution [°C]	0.1
Maximum resolution [bit]	16
Accuracy [±°C]	0.3 (typical, see datasheet for more information)
Humidity sensor
Sensor (chip)	AM2122
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	99
Smallest resolution [%R.H.]	0.1
Accuracy [±%]	2.0 (typical, see datasheet for more information)
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x AM2122
