YwRobot Power Shield - 1500mAh Li-Po Battery - for Arduino

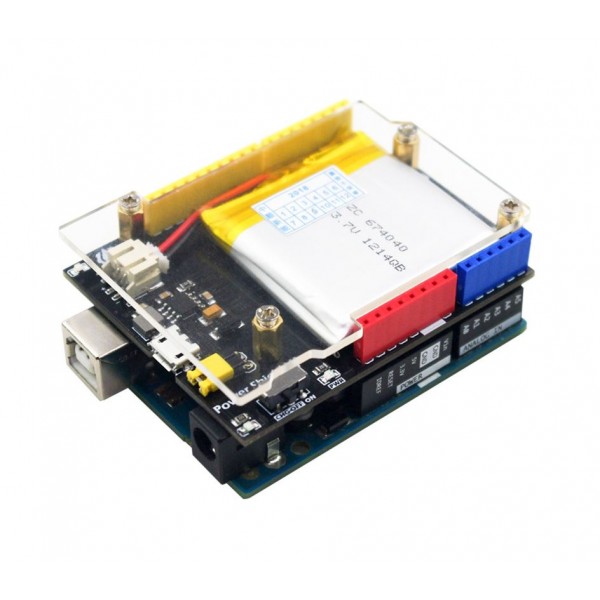

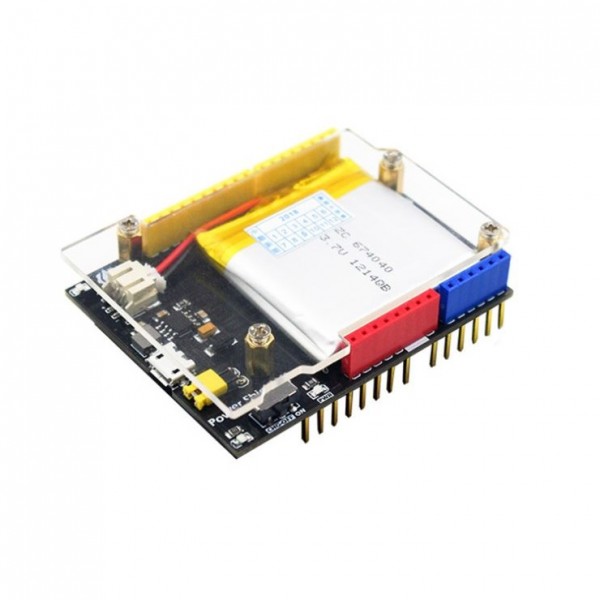

A shield to power an Arduino Uno, Leonardo, Mega or compatible version of these boards via the 1500mAh Li-Po battery that is present on the shield. The battery can be charged via the Micro USB port of the Power Shield V1. By means of a switch, the shield is easily turned on or off.

Specifications:

• Input voltage: 5V DC (via Micro USB)
• Output voltage (for power supply Arduino): 5V
• Maximum output current: 800mA
• Battery capacity: 1500mAh
• Battery charging voltage: 4.2V
• Maximum charging current: 1A
• Built-in protection circuit: Yes
• Simultaneously charge and discharge: No
• Suitable for:
  • Arduino Uno
  • Arduino Leonardo
  • Arduino Mega
  • Compatible variants of the boards above
• Built-in switch that allows the shield to be switched on/off
• 4 Built-in blue LED indicators which flash when the battery is charging, or when the shield is on
• Contains a Jumper, when this is released the four blue LEDs will stop flashing
• Built-in red LED indicator, lights up when the shield is on
• Dimensions PCB: 66 x 54mm

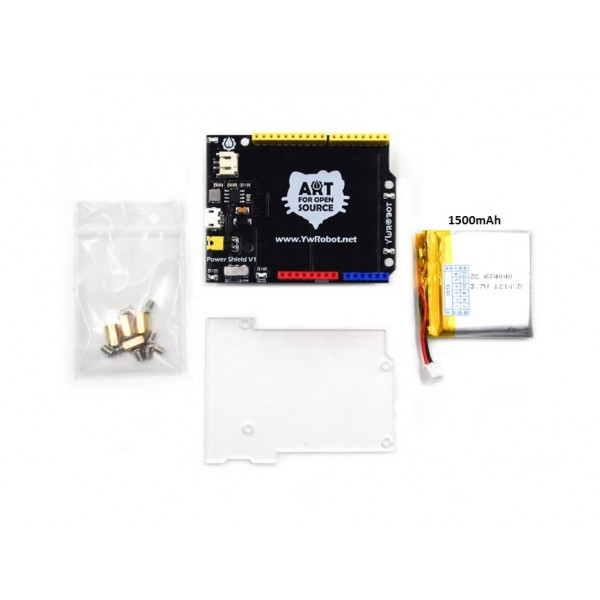

Package contents:

• 1x Power shield
• 1x 1500mAh Li-Po battery
• 1x Protective cap
• 1x Mounting material protective cap
