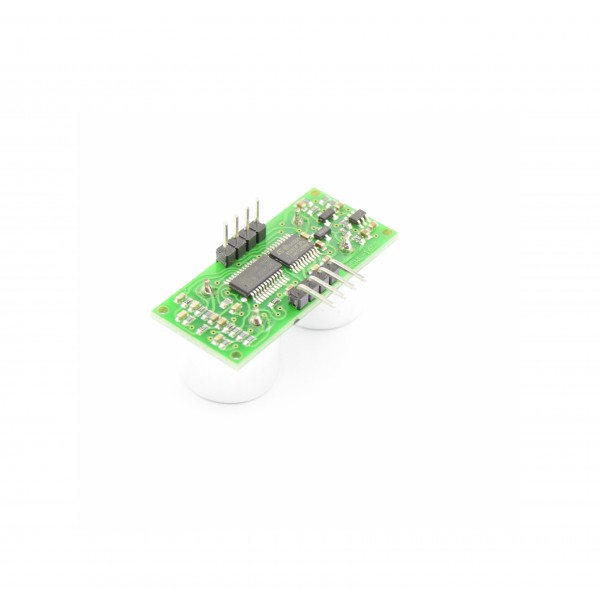

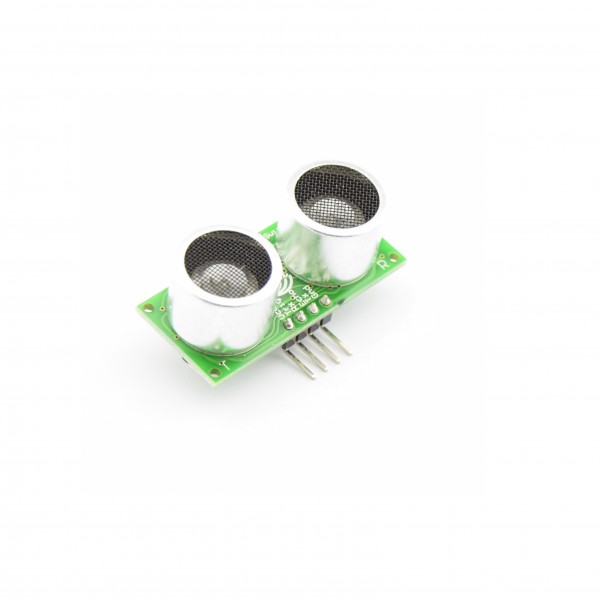

Ultrasonic Sensor - RCWL-1603 - UART - With Temperature Sensor

With this digital ultrasonic sensor with built-in temperature sensor one can easily measure a distance. Due to the built-in temperature sensor, the distance is corrected based on the ambient temperature, which gives more accurate measurements. The sensor can be used in four different ways:

• UART mode
• GPIO mode (compatible with the HC-SR04, but not temperature corrected)
• PWM mode
• Auto UART mode

Specifications:

• Detection range: 2-500cm
• Voltage: 3.0-5.5V
• Current: 11mA (3.3V Vcc), 10mA (5.0V Vcc)
• Resolution: 1mm
• Sensor angle: <15^o
• Dimensions: 40.0x18.0mm
• Output type: UART, GPIO, PWM, auto UART

To get started with the sensor and for more information, see the manual under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.
