Pi Supply Raspberry Pi Supply Switch Module - DIY Kit

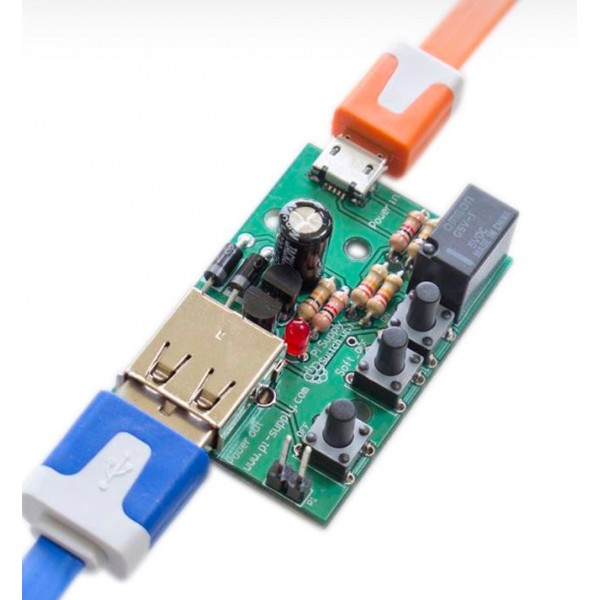

With this kit you make a power switch that automatically shuts off the power when you have turned off the Raspberry Pi. Turning on the Raspberry is then a push of a button on the module. In addition, the module also has a hard shutdown that can be used when the Raspberry Pi freezes.

The module consists of separate components that must be soldered yourself.

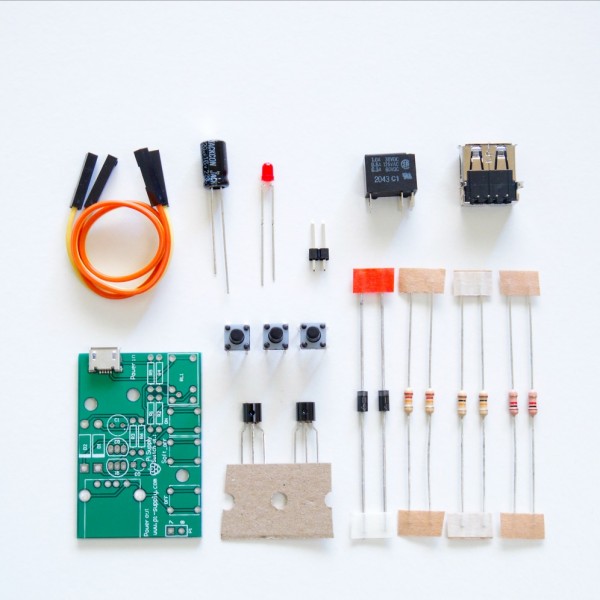

Package contents:

• 1x Pi Switch PCB
• 2x 22k Ohm resistor
• 2x 10k Ohm resistor
• 2x 1k Ohm resistor
• 2x 1N4001 diode
• 2x BC548 transistor
• 1x 3mm red LED
• 1x 220uF capacitor
• 3x tactile switches
• 1x Relay
• 1x 2-pin male header
• 1x USB-A  connector
• 1x USB to micro USB cable
• 2x Female-female DuPont cables

See the following page for instructions and to get started with the module:   Getting Started

Note: The color of the USB cable may differ from the images.
