LM317 Adjustable Voltage Converter Module - Standard Potentiometer - DIY Kit

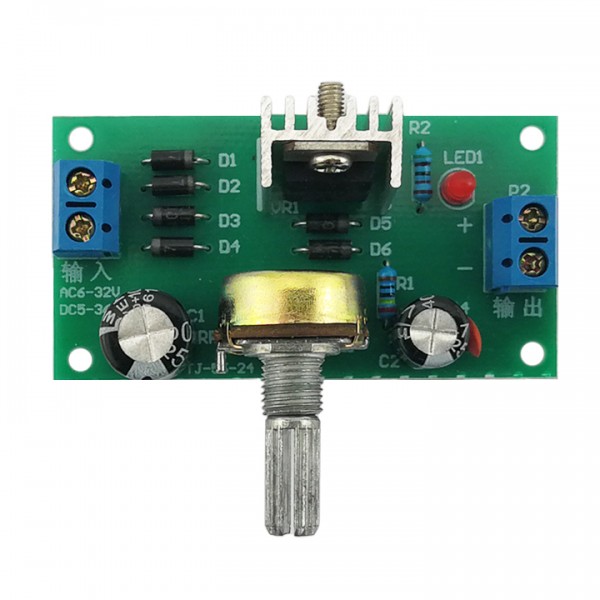

With this do-it-yourself kit you make an adjustable voltage regulator based on the LM317.

Specifications:

• Input voltage: 5.0-25VDC, 6.0-20VAC
• Output voltage: 1.25VDC-12VDC
• Maximum output current: 1.0A
• PCB format: 60x32mm

Note: A higher possible input voltage is indicated on the PCB, however, keep the above-mentioned input voltage because the capacitor can only handle 25V and otherwise it can break.

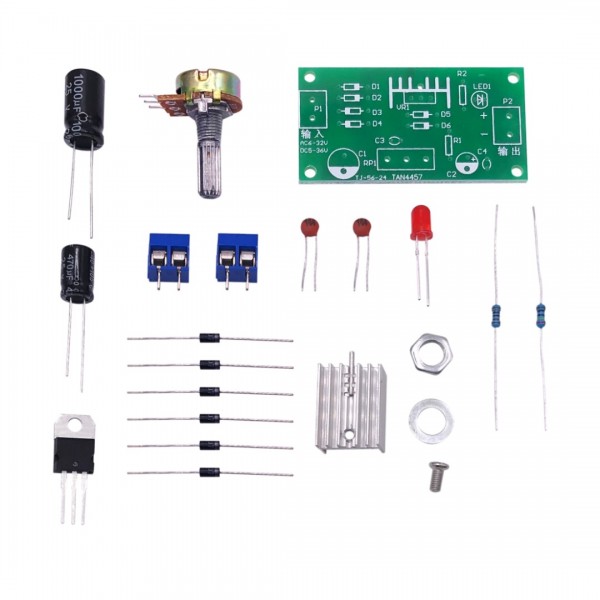

Contents of the kit (and location on the PCB):

• 1x PCB
• 1x LM317 (VR1)
• 1x Cooling block + screw
• 2x 0.1uF (104) capacitor (C3, C4)
• 1x 470uF capacitor (C2)
• 1x 1000uF capacitor (C1)
• 1x 240 ohm resistor (R1)
• 1x 1k ohm resistor (R2)
• 2x Screw terminal (P1, P2)
• 1x Potentiometer (RP1)
• 6x Diode (D1, D2, D3, D4, D5, D6)
• 1x LED (LED1)

The locations of the components are listed on the PCB.
