JYE Tech DSO138 Mini - Portable Oscilloscope - DIY kit

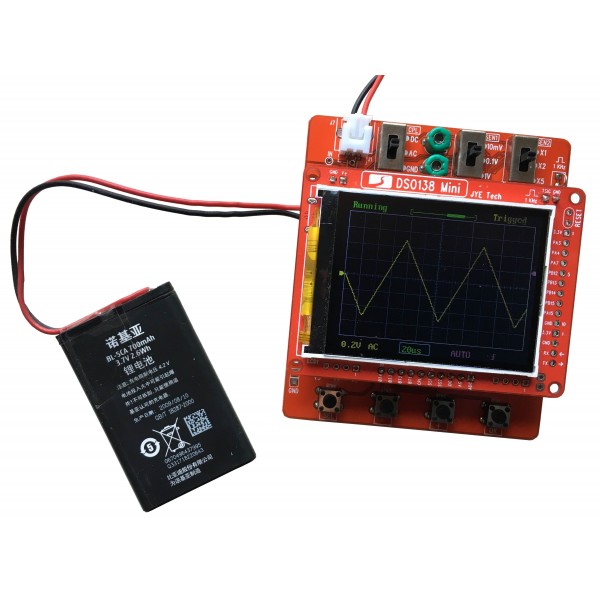

Portable oscilloscope with 3.5-6V connection (eg a 5V adapter, USB adapter, USB power bank or 3x/4x AA batteries).

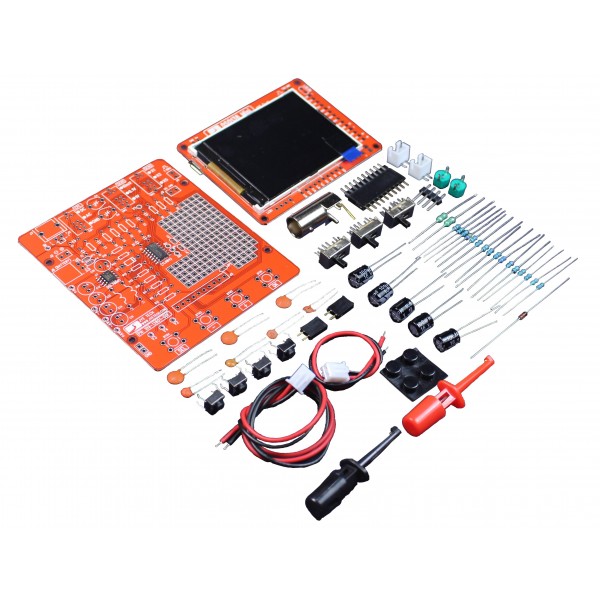

Put your own oscilloscope together with this DIY kit:

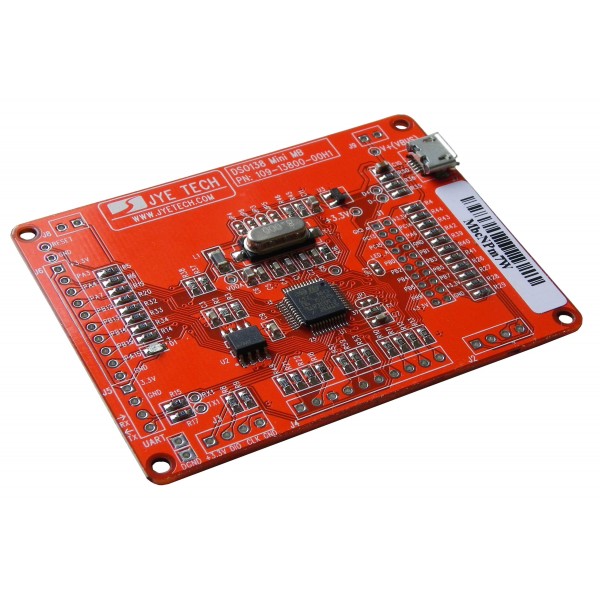

• 2.4 inch 240x320 pixels LCD pre-soldered on PCB

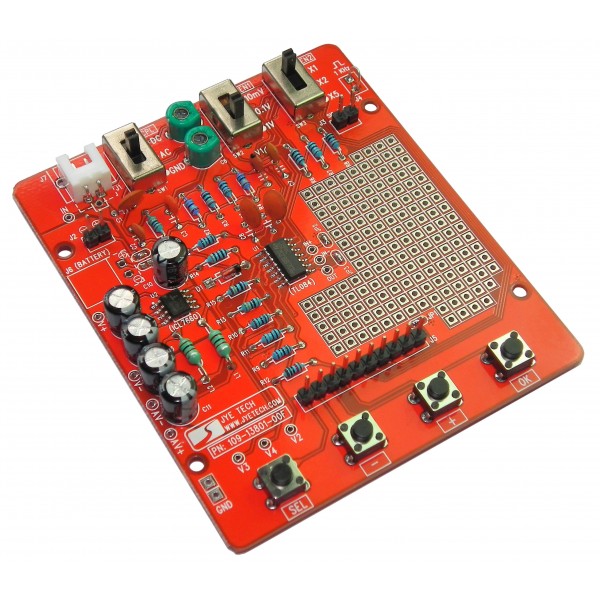

• In this kit all SMD components are already pre-soldered
• +/- 48 Through-hole components for soldering yourself

Specifications:

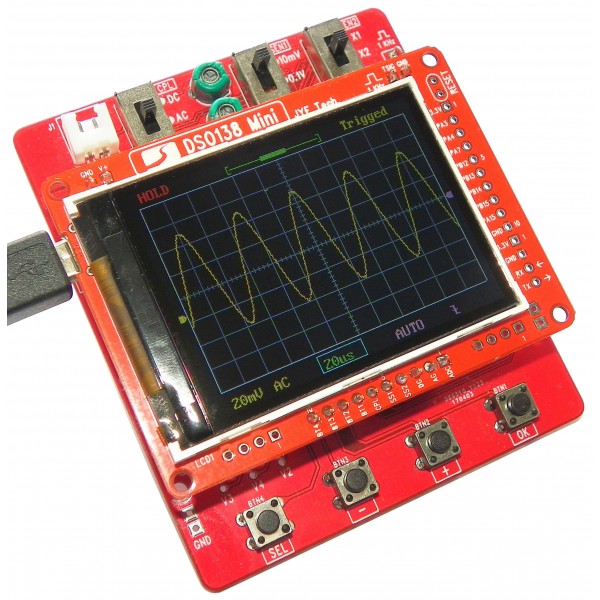

• 2.4 inch LCD screen with 240x320 pixels
• 1 measurement channel
• Sampling rate: 1 Msps
• Analogue bandwidth: 200 KHz
• Vertical sensitivity: 10 mV/div - 5V/Div
• Time base: 10 µs/Div - 500 s/Div
• Resolution: 12-bit
• Input voltage (channel): 50V max
• Input impedance: 1 M Ohm
• Input voltage (power supply): 3.5 - 6V DC
• Input current (power supply): 120 mA @ 9V
• Dimensions: 85 x 75 x 15mm

A manual is included and can also be found here
For more information, see the following page: DSO138mini DIY Kit

Please note: We recommend purchasing this kit only if you have experience with soldering. If you do not get the kit working, please carefully check all installed components. The PCB with SMD components has been tested in the factory and the total should be functional and working with good soldering work.
