Heltec ESP32 Dev Backplane - for HT-CT62 and Wireless Shell
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006444
€9.00
Ex Tax: €7.44
Your shopping cart is empty!
This breakout board is compatible with the Heltec CT62 and wireless shell modules.

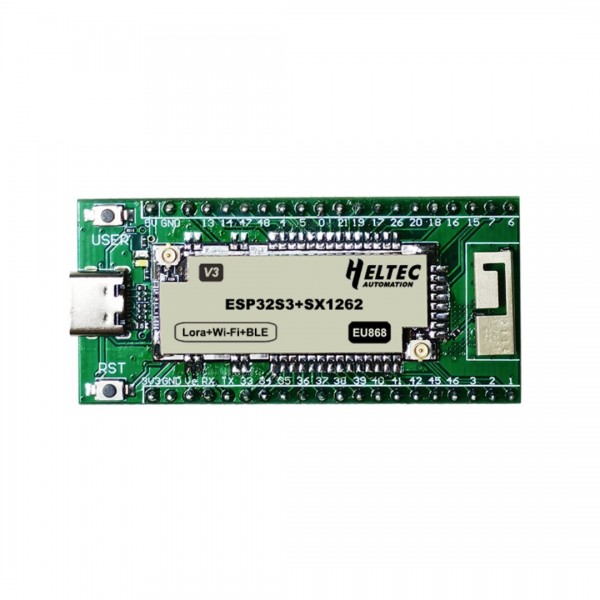

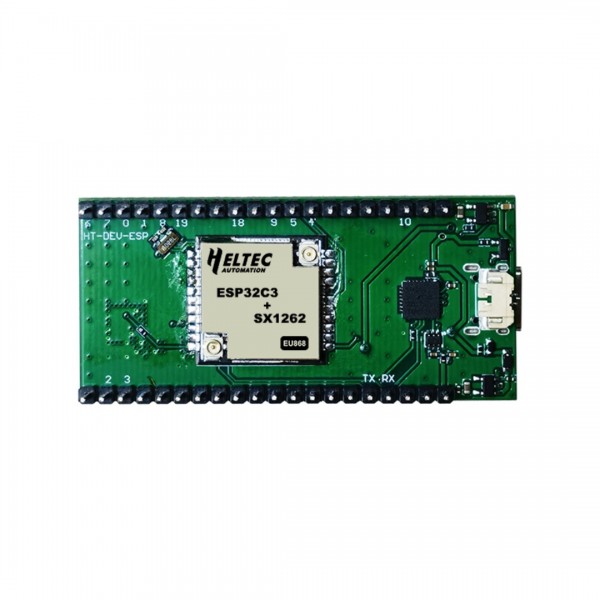

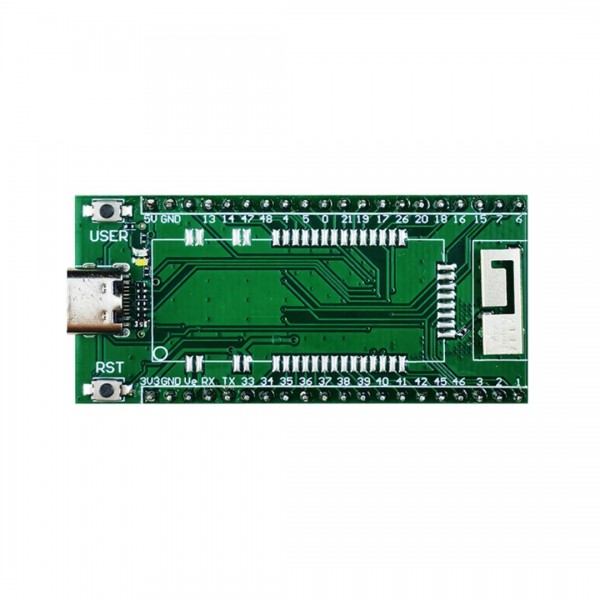

Note: There is no HT-CT62 or Wireless Shell module on it yet (photo 2 and 3 are just examples).
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Schematic: 006444_HT-DEV-ESP_V3_Sch.pdf
| General | |
| Brand | Heltec |
| Manufacturer model/SKU | HT-DEV-ESP |
| Maximum operating humidity [%R.H.] | 90 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| Features | Battery charger Programmable button(s) |
| General physical appearance | |
| Main color | Green |
| Weight [g] | 7 |
| Dimension X [mm] | 60 |
| Dimension Y [mm] | 28 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART USB CDC |
| USB to serial converter | CP2102 |
| Battery circuit | |
| Battery charger chip/SoC | TP4054 |
| Supported battery chemistry | Li-Po Li-ion |
| Maximum charging voltage [V] | 4.2 |
| Maximum charging current [mA] | 500 |
| Adjustable charging current | No |
| Protection circuit | No |
| Connectors | |
| Power supply connector(s) | USB-C female Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| Battery connector(s) | Molex Picoblade (compatible) male |
| Package contents | |
| Package contents | 1x ESP32 DEV Backplane 1x Battery cable 2x Male pin header 20p |
