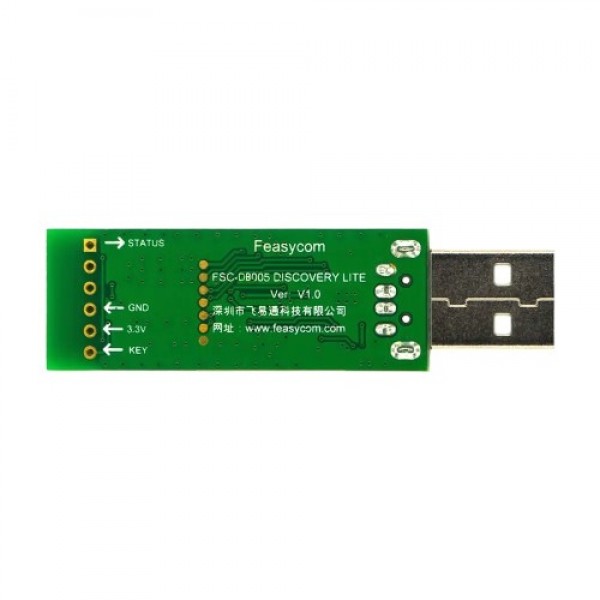

Feasycom FSC-DB005-USB Breakout Board
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007658
€11.50
Ex Tax: €9.50
Your shopping cart is empty!
A USB breakout board from Feasycom that is compatible with various Bluetooth modules, including: FSC-BT826, FSC-BT836, FSC-BT986 etc.
See the following page for more information: Wiki
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 007658_FSC-DB005-SCHEMATIC.pdf
| General | |
| Brand | Feasycom |
| Manufacturer model/SKU | FSC-DB005-USB |
| Model revision | V1.1 |
| General physical appearance | |
| Main color | Green |
| Weight [g] | 5 |
| Dimension X [mm] | 46 |
| Dimension Y [mm] | 17 |
| Form factor | USB stick Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | UART USB CDC |
| Default baudrate | 115200 |
| USB to serial converter | CP2104 |
| Connectors | |
| Power supply connector(s) | USB-A male |
| IO-connector(s) | USB-A male Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| Package contents | |
| Package contents | 1x Breakout board |
