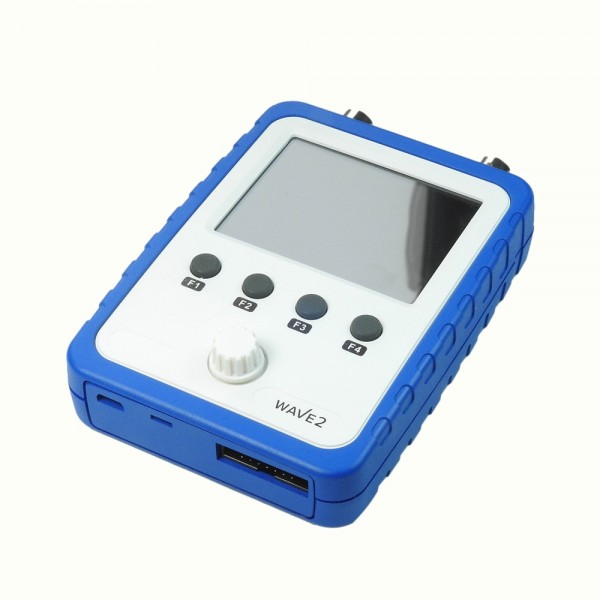

JYE Tech Wave2 - Portable Oscilloscope - 2 Channels

Portable oscilloscope with 2 channels. Two BNC to test probe cables are included with this oscilloscope.
This version is fully assembled.

Specifications:

• 2.4 inch LCD screen with 240x320 pixels
• 2 Measurement channels
• Sampling rate: 1 Msps
• Analogue bandwidth: 200 KHz
• Vertical sensitivity: 5 mV/div - 20V/Div
• Time base: 10 µs/Div - 500 s/Div
• Input voltage (channel): 50V max
• Input impedance: 1 M Ohm
• Input voltage (power supply):  5 VDC (via USB) or 3.7VDC (via Li-Po battery)
• Input current (power supply): 300mA @ 3.7-5V

Package contents:

• 1x Wave2 oscilloscope (Li-Po battery included)
• 2x BNC to test probe cable
• 1x USB cable
• 1x Quick start guide

The quick start guide can also be found under the tab "Downloads and links".
For more information, see the following page: WAVE2 2-Channel Oscilloscope

Check the tab "Downloads" for more information and/or downloads.
