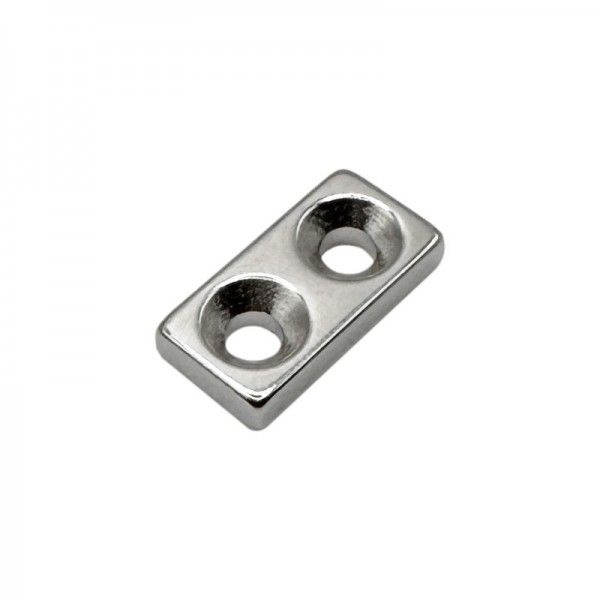

XMP Neodymium Magnet 16x8x3mm - with 3.2mm Countersunk Mounting Holes - N52

Based on 0 review(s) - Write a review

€1.00

Ex Tax: €0.83

Qty

Add to Cart

Add to wishlist

1000+ pieces in stock

A strong neodymium magnet with countersunk mounting holes to securely mount the magnet.

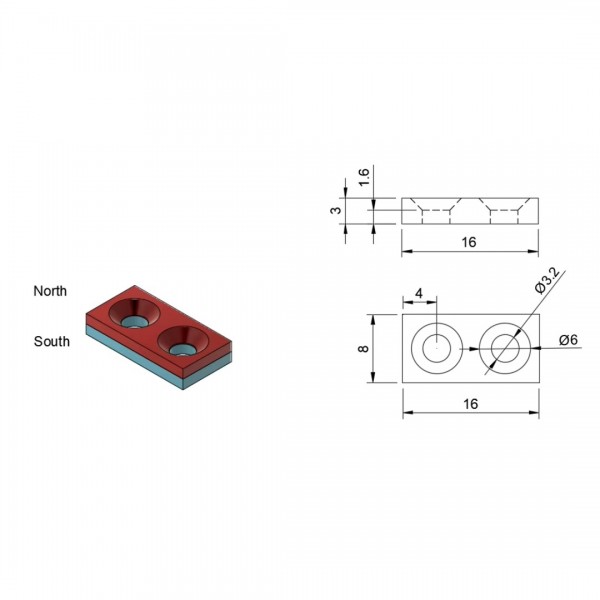

See images for polarisation direction and dimensions.

Note: Neodymium is quite brittle, so be careful for hard impacts against magnetic materials.

Please login or register to review

This product has 0 review(s) in total.

Tags: XMP Neodymium Magnet 16x8x3mm - with 3.2mm Countersunk Mounting Holes - N52 , XMP16x8x3-3.2MMCS-N52 , Magnets

General
Brand	XMP
Norm conformity	RoHS
Maximum operating temperature [°C]	80
General physical appearance
Main color	Gray/silver
Weight [g]	3
Dimension X [mm]	16
Dimension Y [mm]	8
Dimension Z [mm]	3
Material	NdFeB
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Individual component
Magnet
Magnet type	Permanent magnet
Shape	Block
Strength classification (N grade)	52
Magnetization direction	Z
Package contents
Package contents	1x Magnet
