XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35

XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006044
€1.10
Ex Tax: €0.91

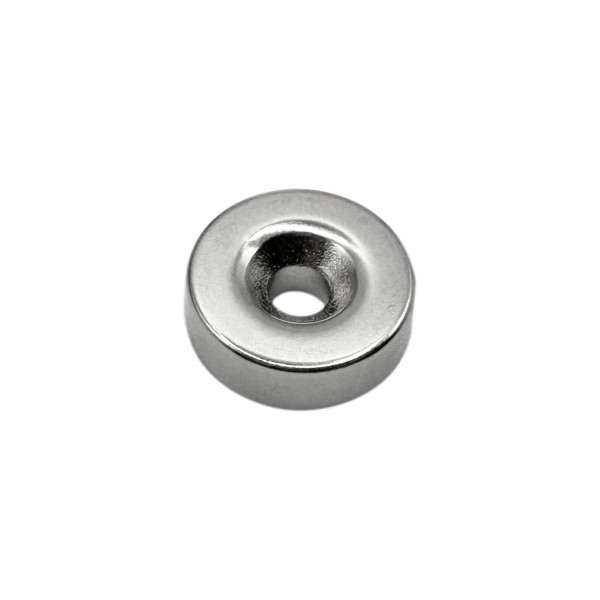

A strong neodymium magnet with a countersunk mounting hole to securely mount the magnet.

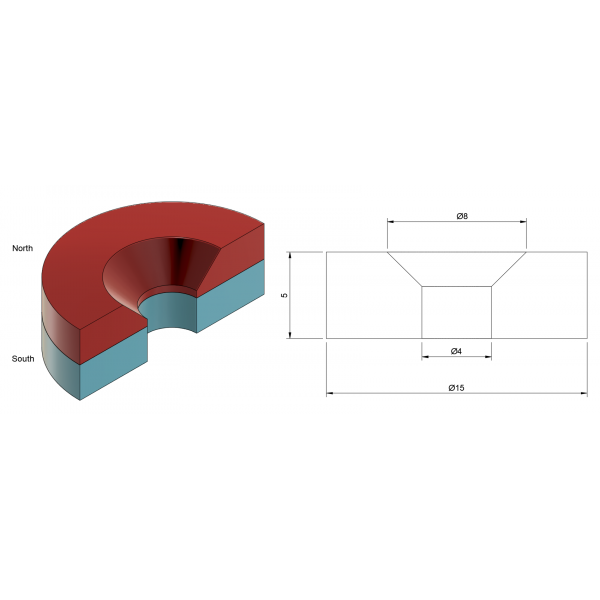

See images for polarisation direction and dimensions.

Note: Neodymium is quite brittle, so be careful for hard impacts against magnetic materials.

Please login or register to review

Reviews Over XMP Neodymium Magnet 15x5mm - with 4mm Countersunk Mounting Hole - N35

This product has 0 review(s) in total.

Specifications

General
Brand XMP
Norm conformity RoHS
Maximum operating temperature [°C] 80
General physical appearance
Main color Gray/silver
Weight [g] 6
Dimension X [mm] 15
(See images)
Dimension Y [mm] 15
Dimension Z [mm] 5
Material NdFeB
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4
Form factor Individual component
Magnet
Magnet type Permanent magnet
Shape Ring
Strength classification (N grade) 35
Magnetization direction Axial
Package contents
Package contents 1x Magnet
