Geekworm N508 V2 Metal Case for Orange Pi Pi 5 PLUS - with Fan - SSD support - Black

Availability: Directly available from warehouse in Eindhoven
SKU: 005744

Based on 0 review(s) - Write a review

€15.50

Ex Tax: €12.81

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

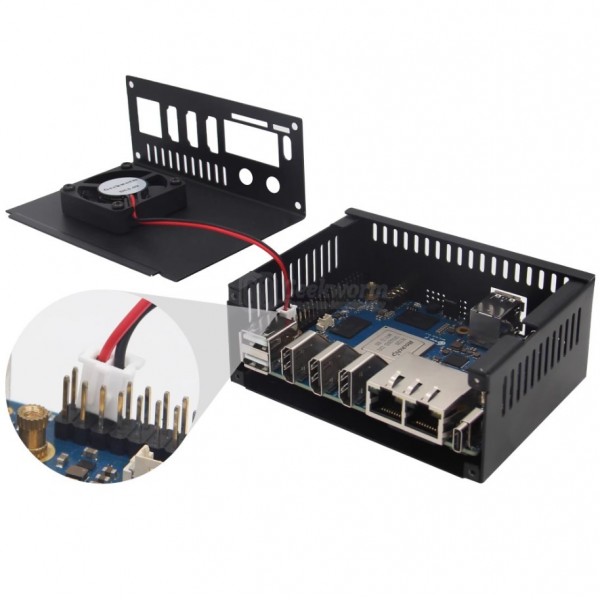

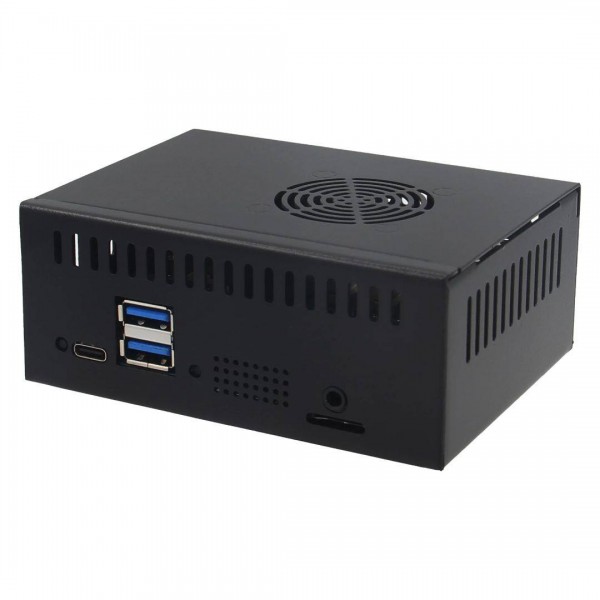

A firm metal case for the Orange Pi 5 Plus, including a 4010 5V cooling fan. This protects the Orange Pi and cools it properly at the same time (see images).
This new version of the N508 features two holes for antennas.

Note: The antenna holes are not intended for the antennas included with Orange Pi Wireless Module R6, but for SMA antennas. For this, you will need the separate antennas and an adapter cable.

Note: The Orange Pi is not included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Geekworm N508 V2 Metal Case for Orange Pi Pi 5 PLUS - with Fan - SSD support - Black

Average Rating:

This product has 0 review(s) in total.

Tags: Geekworm N508 V2 Metal Case for Orange Pi Pi 5 PLUS - with Fan - SSD support - Black , GW-N508-V2 , Others

Specifications

General
Brand	Geekworm
Manufacturer model/SKU	N508 (New Version)
Features	Enclosure Fan
General physical appearance
Main color	Black
Weight [g]	206 (entire kit)
Dimension X [mm]	108
Dimension Y [mm]	81
Dimension Z [mm]	44
Mounting options	Mounting hole(s)
Form factor	Orange Pi 5 Plus accessory
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Fan
Orientation	Axial
Connectors
Power supply connector(s)	JST-XH (compatible) female
Enclosure
Lid/front-cover color	Black
Material	Steel
Lid/front-cover assembly	Bolts
Gasket	None
Package contents

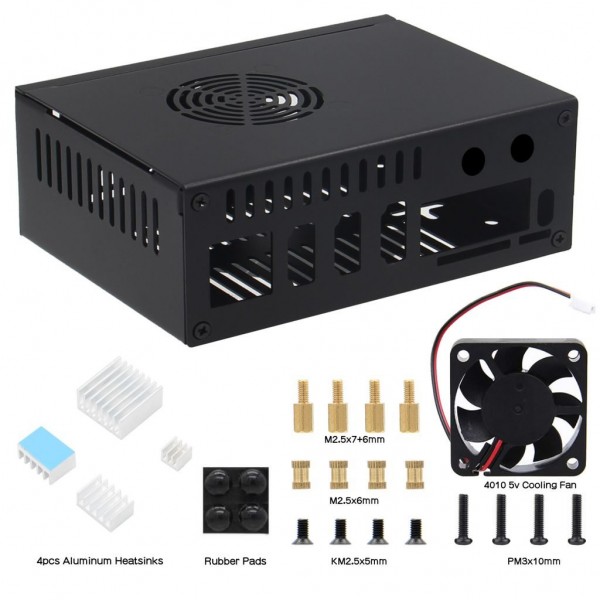

Package contents	1x Fan 1x Case 4x Rubber foot 4x Heatsink (different sizes) 4x Spacer 4x Threaded insert 1x Bolt set
