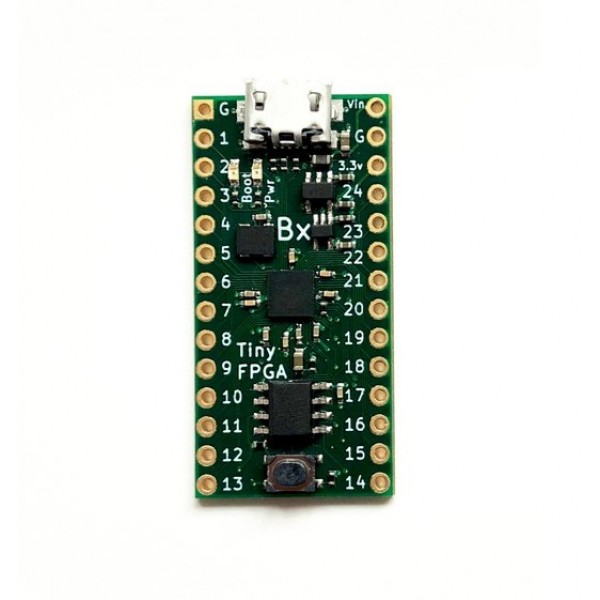

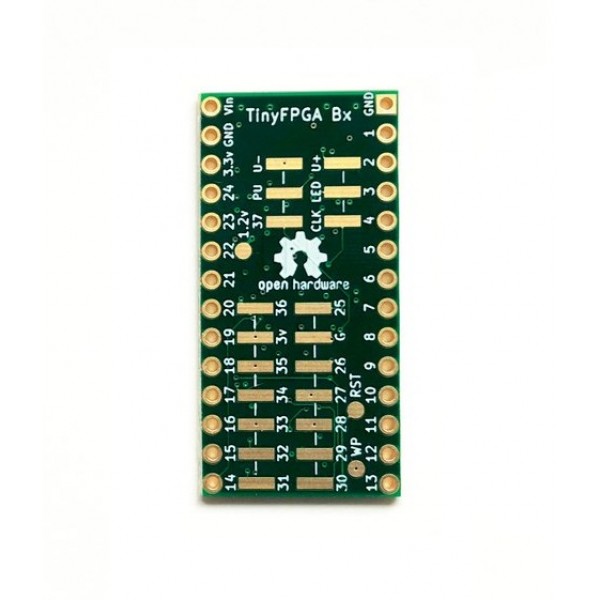

TinyFPGA BX

The TinyFPGA BX is an FPGA development board. The board can be programmed with IceStudio and Atom IDE.

Specifications:

• Input voltage: 5V DC via micro USB (micro USB not included)
• I/O voltage: 3.3V
• Chipset: ICE40LP8K
  • Look-up tables: 7680
  • Flash memory: 1MB
  • RAM: 128Kb
• I/O pins: 41
• PCB dimensions: 35.6 x 17.8mm

Package contents:

• 1x TinyFPGA BX board

For more information and to get started with the board, see the following page: TinyFPGA BX
