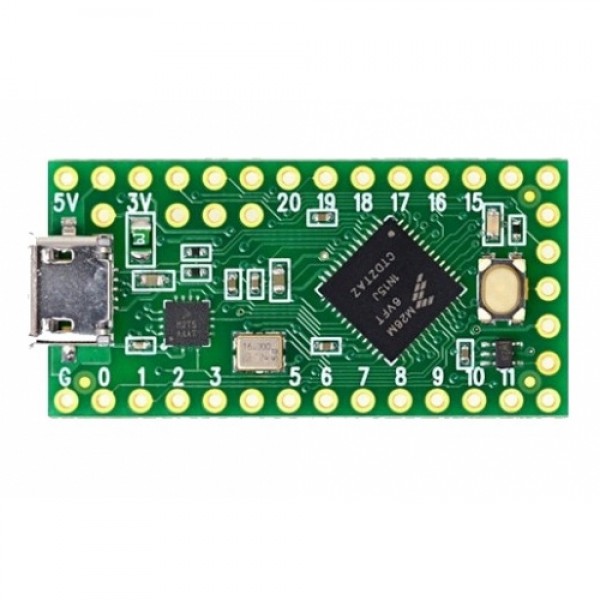

Teensy LC

The Teensy LC is very compact and many times more powerful than most standard Arduino's.
This Teensy is also suitable for use with Arduino with Teensyduino.
Would you rather use the hex file directly? Then use the Teensy Loader Application.

Specifications:

• 48MHz NXP/Freescale MKL26Z64VFT4 Cortex-M0+ microcontroller
• 62kB Flash Memory
• 8kB RAM Memory
• 128 bytes EEPROM (emulation via flash memory)
• 27 Digital pins (3.3V)
• 13 Analog input pins
• 1 Analog output with 12-bit resolution
• 7 Timers (up to 10 PWM outputs possible)
• 1x (Micro-)USB connection
• 3x Serial (RX/TX) connection
• 2x SPI connection
• 2x I2C connection
• 1x I2S Audio connection

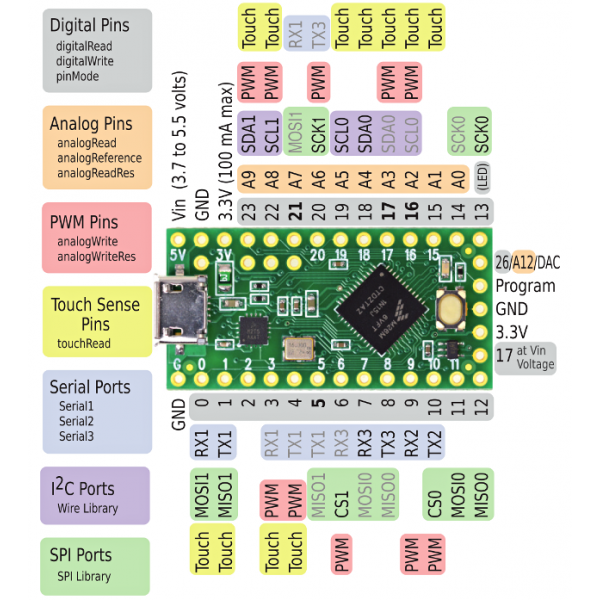

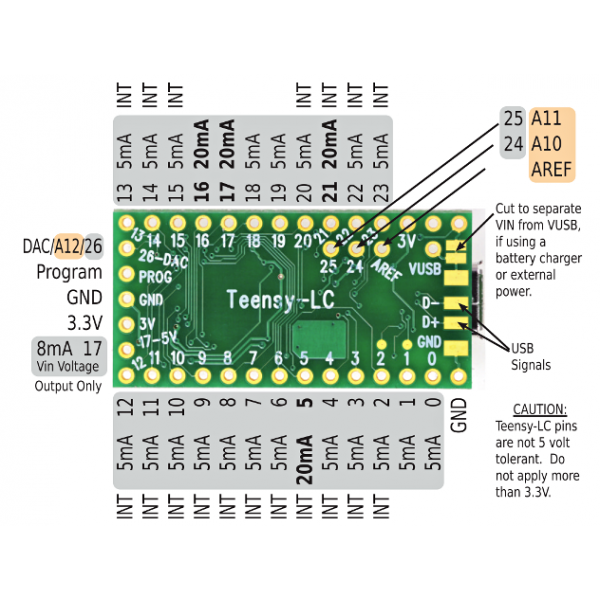

• See the images for all connections.

For more information see: Teensy LC - Low Cost

Note: This Teensy is not equipped with soldered pin headers and no pin headers are included!
