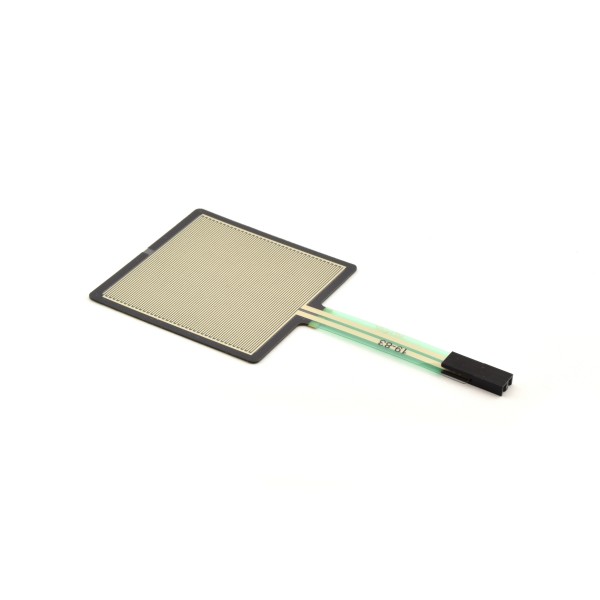

Taiwan Alpha Membrane Pressure sensor - 44mm Square - with Female Pin Headers

Taiwan Alpha Membrane Pressure sensor - 44mm Square - with Female Pin Headers
Discontinued
Taiwan Alpha Membrane Pressure sensor - 44mm Square - with Female Pin Headers
  • Availability: Discontinued
  • SKU: 002360
€3.50
Ex Tax: €2.89
10 or more €3.25
20 or more €3.00
50 or more €2.90
100 or more €2.80
200 or more €2.70

This sensor is capable of measuring pressure by means of the membranes processed in the sensor.
The resistance of the sensor changes based on the pressure on the membrane.
With a simple voltage divider you can easily read the sensor on an analog input pin on your Arduino.

Specifications:

  • Brand: Taiwan Alpha
  • Type:  MF02-N-321-A01
  • Active area: approximately 39.6mm x 39.6mm (square)
  • Pressure range: 30 to 1000g (0.3 to 9.8N)
  • Has female pin header connectors for solder-free connection

See the following page to get the sensor working with Arduino:

How to use a Force Sensitive Resistor - Arduino Tutorial

Check the tab "Downloads" for more information and/or downloads.
