Seeed Studio Grove LED Strip Driver

A simple LED strip driver from Seeed Studio for powering and controlling LED strips up to 5 meters. This module is "chainable", which means that multiple drivers can be connected in sequence using the IN and OUT Grove connectors.

Specifications:

• Supply voltage: 9 - 12V DC (via screw terminal)
• Signal voltage: 5V
• LED strip driver:
  • LED strip voltage: 9 - 12 V (same as supply voltage)
  • Maximum switching current per LED channel: 3A (see link below for more information)
  • Suitable LED strips: Standard RGB
  • LED strip driver: P9813

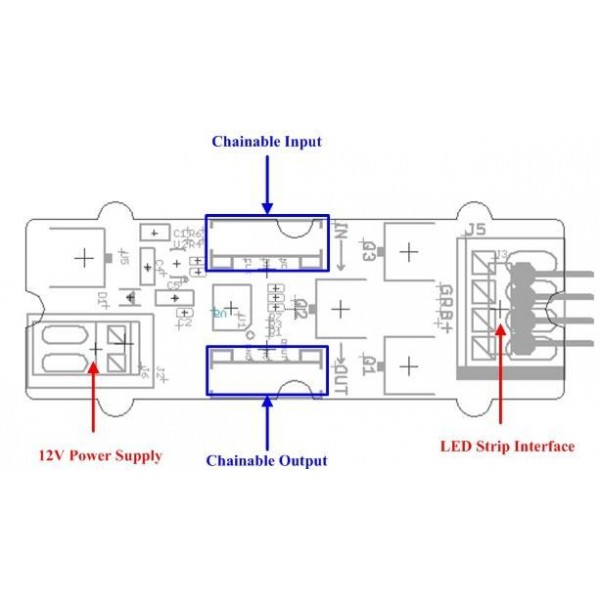

• Connectors:
  • Signal: Grove
  • Power supply: Screw terminal
  • LED strip: Screw terminal

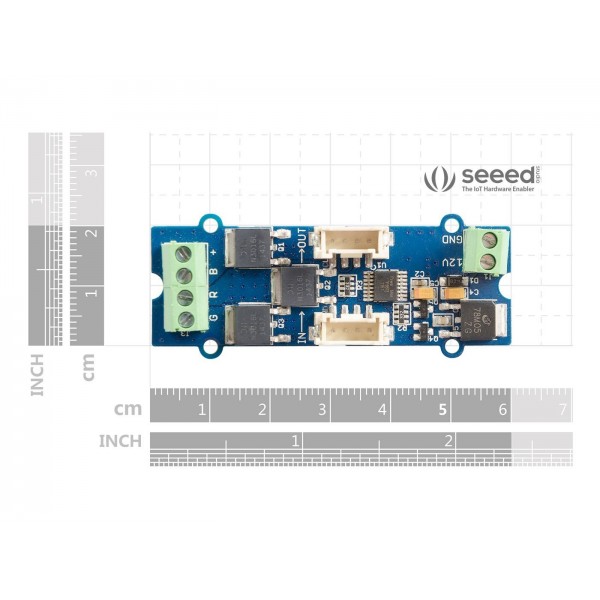

• Dimensions: See images

Package contents:

• 1x Seeed Studio Grove LED Strip Driver
• 1x Grove cable

See the following page for more information: Seeed Studio Grove LED Strip Driver
