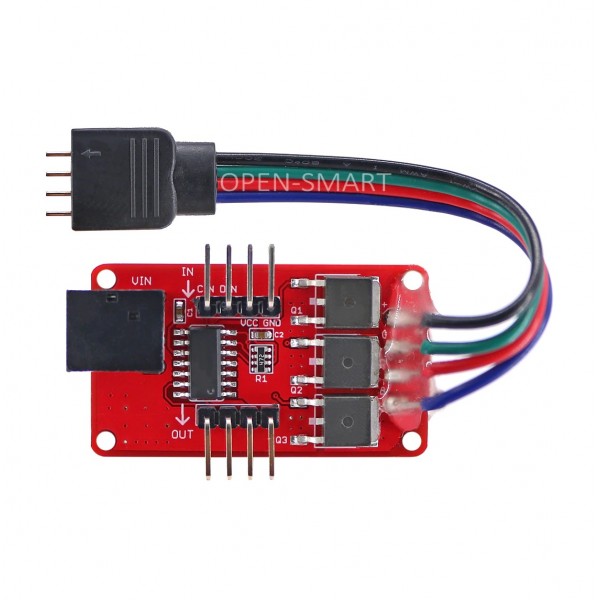

Open-Smart RGB LED Strip Driver Module

This LED strip driver module is based on the P9813, it has the ability to control an RGB LED strip up to 5 meters and is Arduino compatible. The module also offers the possibility to connect multiple consecutive drivers via the digital output pins.

This version has a DC jack plug and an LED strip cable to easily connect the power supply and LED strip.

Specifications:

• Input voltage LED strip: 12V DC
• Signal voltage: 4.5-5.5V DC
• Maximum power: 72W
• Has four M2 holes for mounting
• PCB dimensions: 24mm x 42 mm

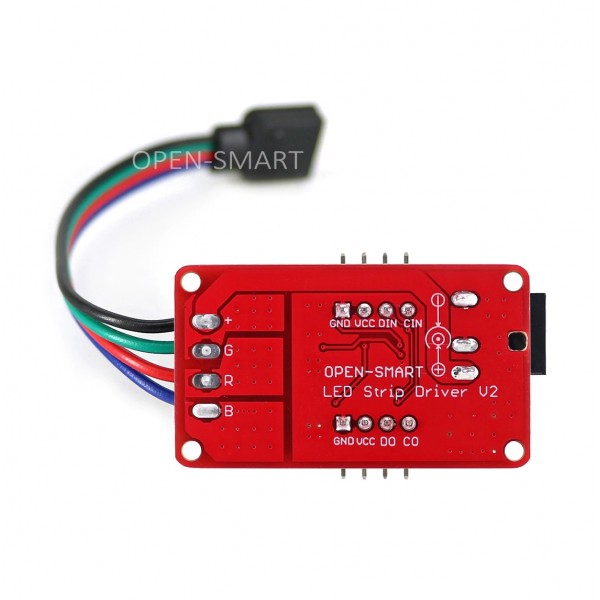

Pinout:

• +: Positive connection LED strip
• G: Connection of green LEDs of the LED strip
• R: Connection of red LEDs of the LED strip
• B: Connection of blue LEDs of the LED strip
• +12V: Input voltage LED strip (12V DC)
• GND: Ground/min
• VCC: Input voltage P9813 chip (4.5-5.5V DC)
• DIN: Signal pin of the Arduino (adjustable in code)
• CIN: Clock pin of the arduino (adjustable in code)
• DO: Signal pin for consecutive LED strip driver
• CO: Clock pin for consecutive LED strip driver

See sample code and the corresponding library for the LED strip driver in the 'P9813LEDStripDriver.zip' file under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.
