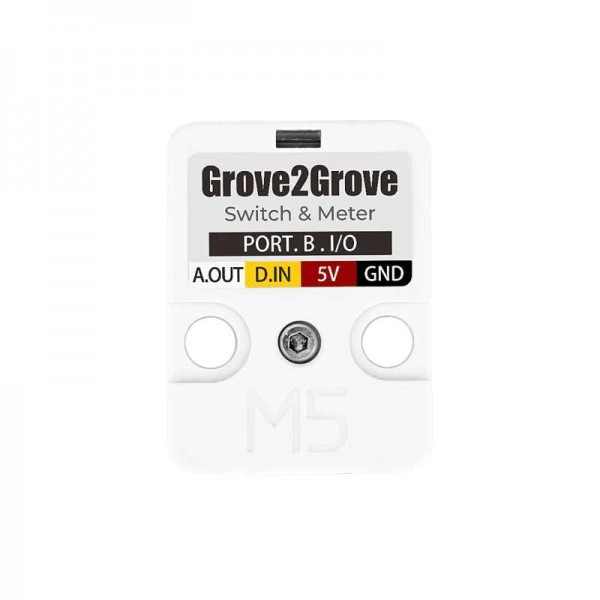

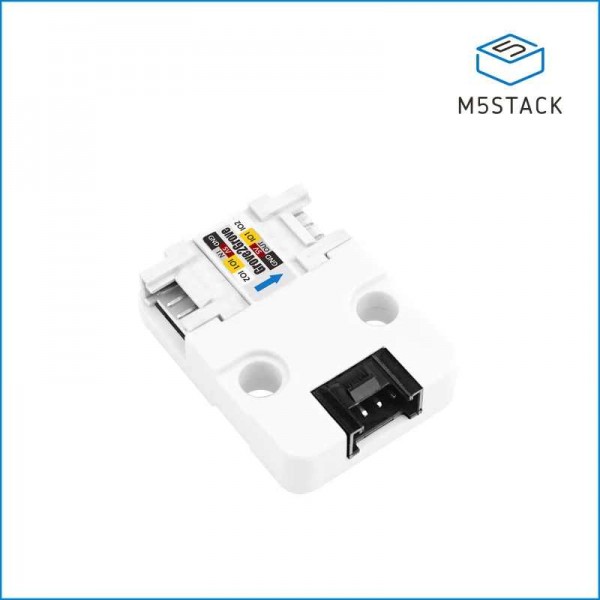

M5Stack Grove2Grove Unit - Current Sensor and Power Switch

M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
M5Stack Grove2Grove Unit - Current Sensor and Power Switch
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004648
Based on 0 review(s) - Write a review
€6.50
Ex Tax: €5.37
Add to Cart
Add to wishlist

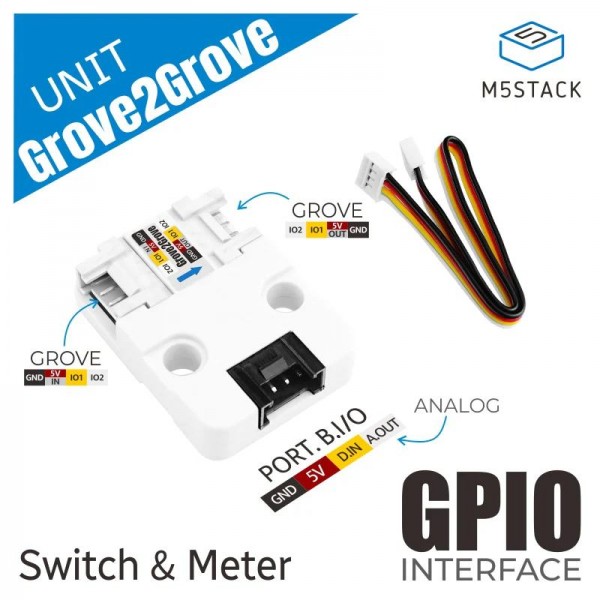

A handy module from M5Stack to monitor the power consumption of another Unit via the built-in current sensor. The other unit can also be switched off completely via the built-in MOSFET switch.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Grove2Grove Unit - Current Sensor and Power Switch

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Grove2Grove Unit - Current Sensor and Power Switch , 004648 , M5Stack , U148 , Electric switch , Current sensor , Enclosure , Analog , Digital (high-active)

Specifications

General
Brand M5Stack
Manufacturer model/SKU U148
Features Enclosure
Current sensor
Electric switch
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
(@1A)
Communication
Hardware interface(s) Analog
Digital (high-active)
Current sensor
Sensor (chip) INA199
Suitable current DC
Measuring method Shunt
Shunt resistance [mΩ] 20
Minimum measuring range [A] 0
Maximum measuring range [A] 1
Switch
Switching method Electrical
Switch type MOSFET
Number of channels/gangs 1
Maximum switching voltage [V DC] 5
Switching voltage equal to supply voltage Yes
Maximum switching current per channel (resistive load) [A] 1
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Switch connector(s) HY2.0 (Grove) male
Measure pin connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x Grove2Grove Unit
1x Grove cable(~20cm)
