Name: Songle SMI-05VDC-SL-2C Relay 5V - 250VAC 5A - 2 Poles - SMI-05VDC-SL-2C
SKU: 006075
Price: 1.75 EUR
Availability: InStock

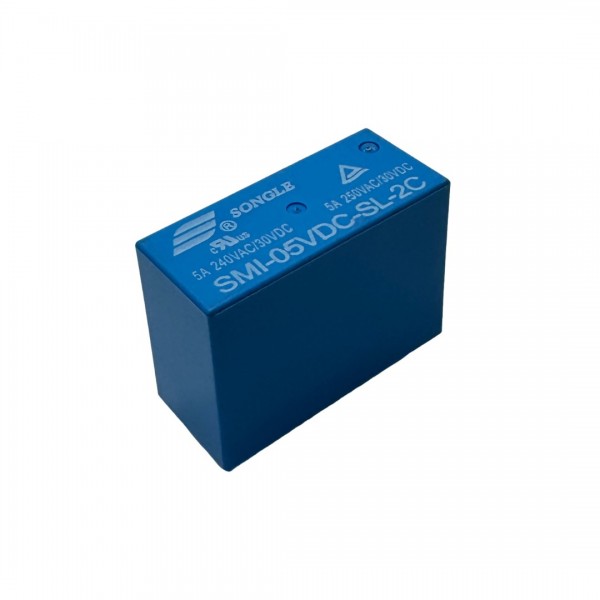

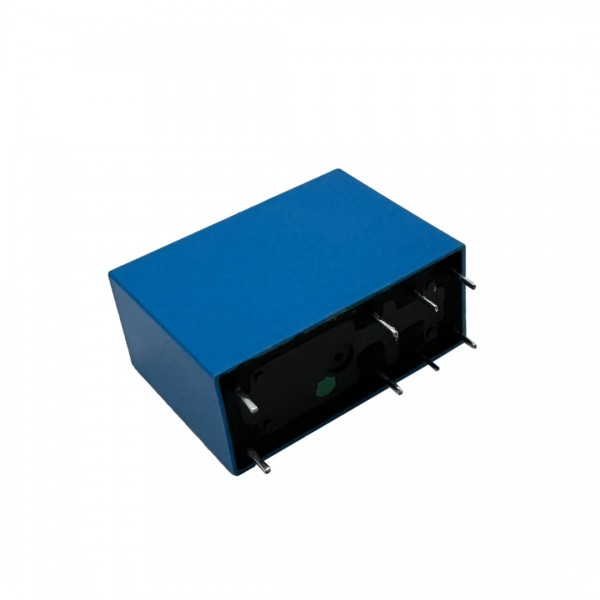

Songle SMI-05VDC-SL-2C Relay 5V - 250VAC 5A - 2 Poles

Based on 0 review(s) - Write a review

€1.75

Ex Tax: €1.45

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

A relay to place on a printed circuit board.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Songle SMI-05VDC-SL-2C Relay 5V - 250VAC 5A - 2 Poles , SMI-05VDC-SL-2C , Relays

General
Brand	Songle
Manufacturer model/SKU	SMI-05VDC-SL-2C
Norm conformity	RoHS
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	85
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Electric switch
General physical appearance
Main color	Blue
Weight [g]	13
Dimension X [mm]	29
Dimension Y [mm]	21
Dimension Z [mm]	13
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	No
General electrical properties
Minimum supply voltage [V DC]	4
Maximum supply voltage [V DC]	6.5
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	1
Number of poles per channel	2
Contact(s)	NC (normally closed) NO (normally open)
Lifespan	10000 (minimum)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switch resistance [Ω]	0.05 (@ 6V DC, 1A)
Maximum switching current per channel (resistive load) [A]	5
Current per engaged relay [mA]	108
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Switch connector(s)	Solder pin(s) (THT)
Package contents
Package contents	1x Relay
Type of packaging	Loose
