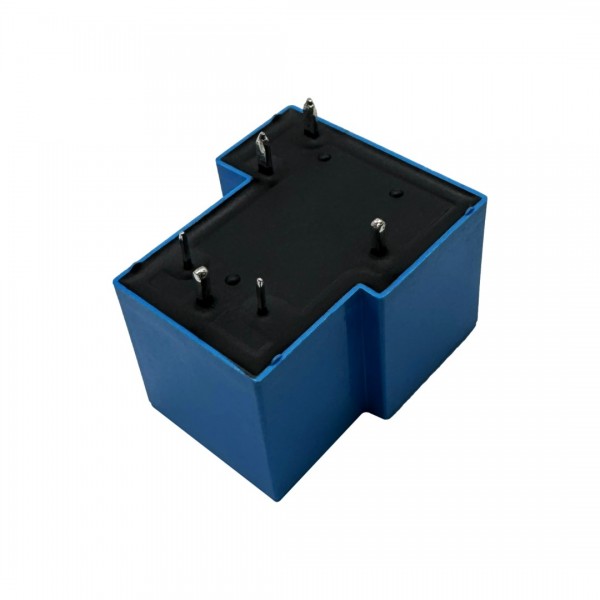

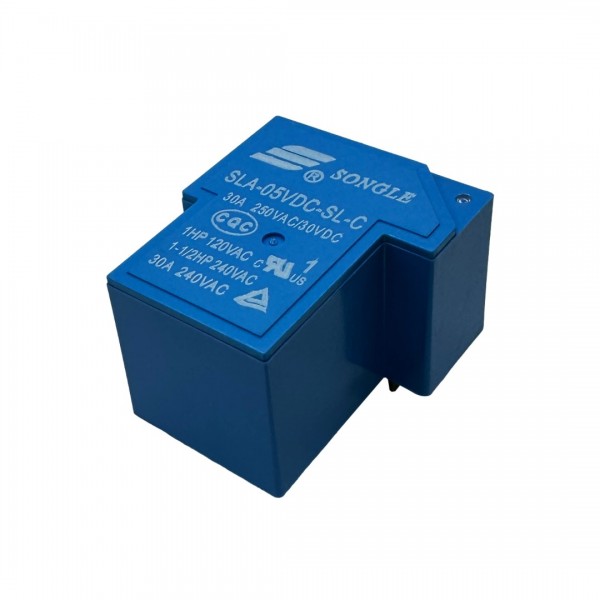

Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A

Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A
Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A
Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A
Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A
Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006071
€2.00
Ex Tax: €1.65

A relay to place on a printed circuit board.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Songle SLA-05VDC-SL-C Relay 5V - 250VAC 30A

This product has 0 review(s) in total.

Specifications

General
Brand Songle
Manufacturer model/SKU SLA-05VDC-SL-C
Norm conformity RoHS
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 85
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Electric switch
General physical appearance
Main color Blue
Weight [g] 25
Dimension X [mm] 32
Dimension Y [mm] 27
Dimension Z [mm] 20
Mounting options THT
Form factor Individual component
Experiment PCB friendly No
General electrical properties
Minimum supply voltage [V DC] 3.8
Maximum supply voltage [V DC] 6.5
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 1
Contact(s) NC (normally closed)
NO (normally open)
Lifespan 10000
(minimum)
Maximum switching voltage [V AC] 250
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switch resistance [Ω] 0.1
(@ 6V DC, 1A)
Maximum switching current per channel (resistive load) [A] 30
Current per engaged relay [mA] 181
Connectors
Power supply connector(s) Solder pin(s) (THT)
Switch connector(s) Solder pin(s) (THT)
Package contents
Package contents 1x Relay
Type of packaging Loose
