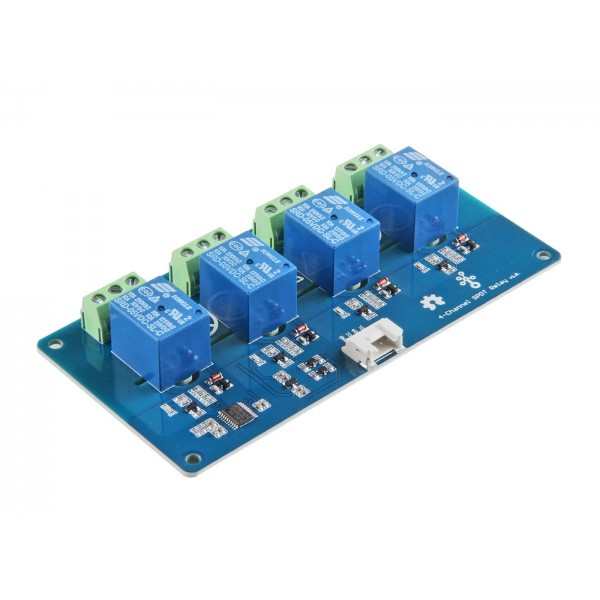

Seeed Studio Grove 4-Channel SPDT Relay - I2C - with Enclosure

A relay module from Seeed Studio with accompanying enclosure. The relays are easy to control individually via I2C.

Specifications:

• Supply voltage: 5V DC
• Signal voltage: 3.3V
• Communication: I2C
• Default I2C address: 0x11 or 0x12
• Relay:
  • Maximum switching voltage: 250V AC or 30V DC
  • Maximum switching current: 10A (250V AC) or 10A (30V DC) (resistive load)
  • Maximum contact resistance: 100mΩ
  • Maximum coil current: ~90mA
  • Number of channels: 4
• Connector: Grove
• Operating temperature: -40 - 85°C

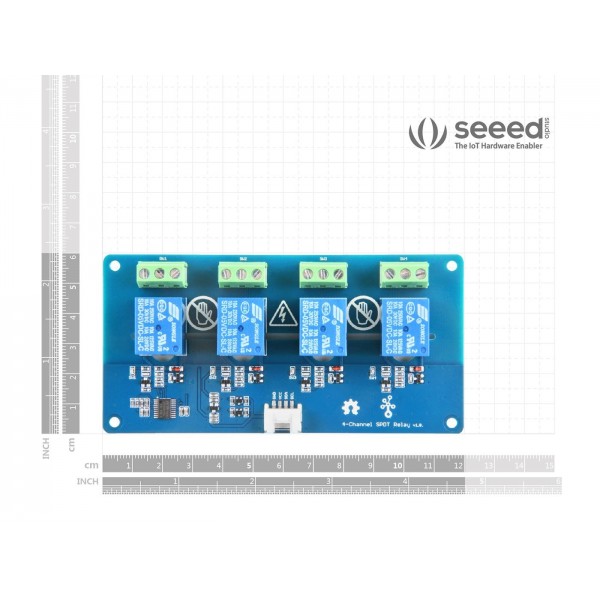

• Dimensions: See images

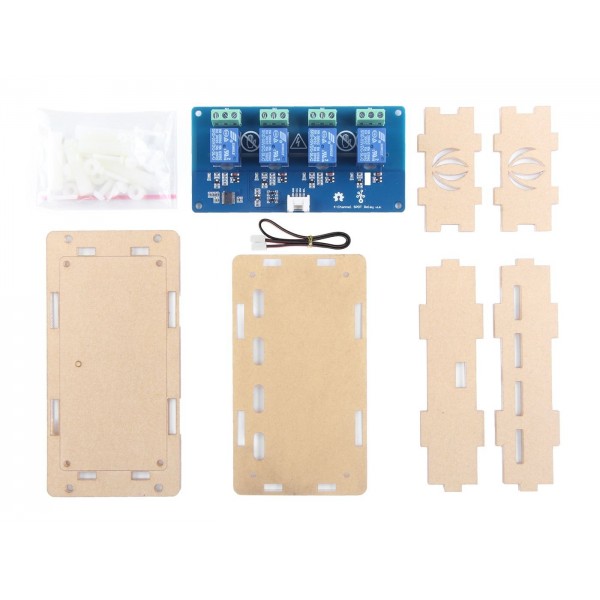

Package contents:

• 1x Seeed Studio Grove 4-Channel SPDT Relay
• 1x Grove cable
• 1x Enclosure
• 1x Mounting material
• 1x Manual

See the following page for more information: Seeed Studio Grove 4 Channel SPDT Relay
