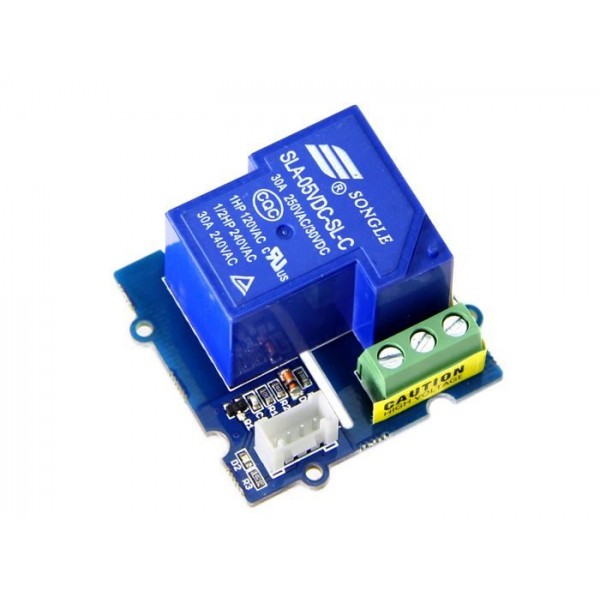

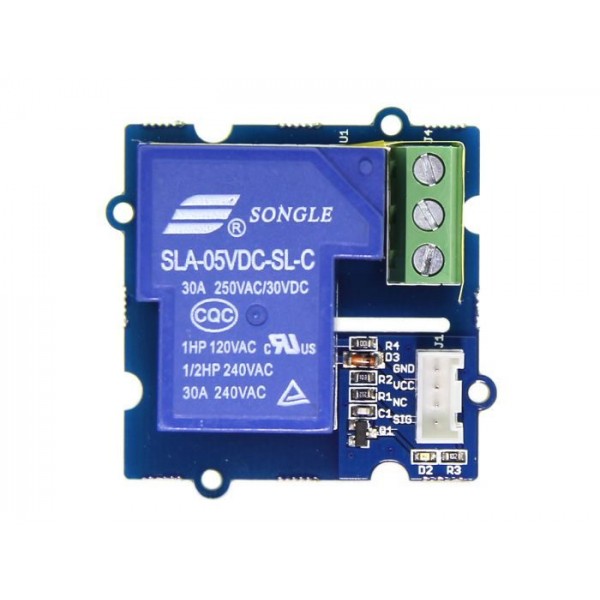

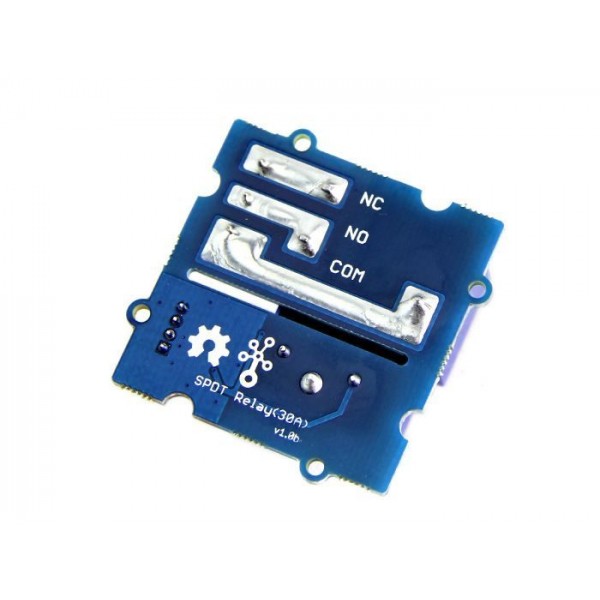

Seeed Studio Grove 1-Channel SPDT Relay - 30A - High-active

A high active relay module with 1 channel from Seeed Studio. By simply applying a 5V signal to the SIG pin, the relay changes state.

Specifications:

• Supply voltage: 5V DC
• Signal voltage: 5V
• Relay:
  • Maximum switching voltage: 250V AC or 30V DC
  • Maximum switching current: 30A (250V AC) or 30A (30V DC) (resistive load)
  • Maximum contact resistance: 100mΩ
  • Maximum coil current: ~185mA
  • Control: High-active
  • Number of channels: 1
• Connector: Grove
• Operating temperature: -25 - 70°C

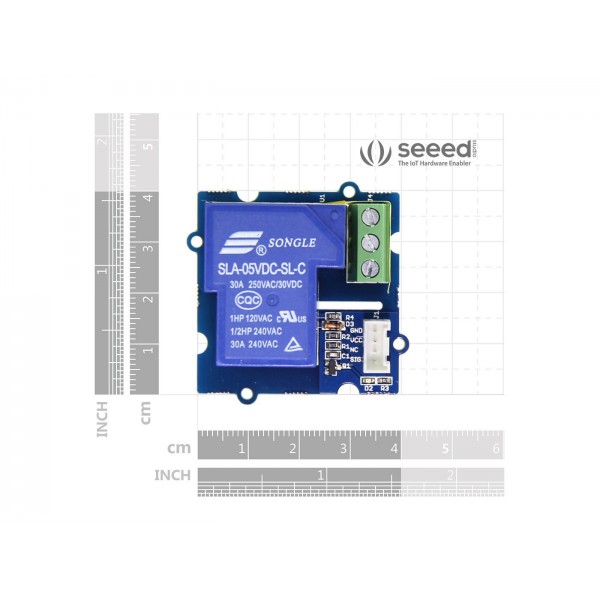

• Dimensions: See images

Package contents:

• 1x Seeed Studio Grove 1-Channel SPDT Relay
• 1x Grove cable

See the following page for more information and examples: Seeed Studio Grove SPDT Relay
