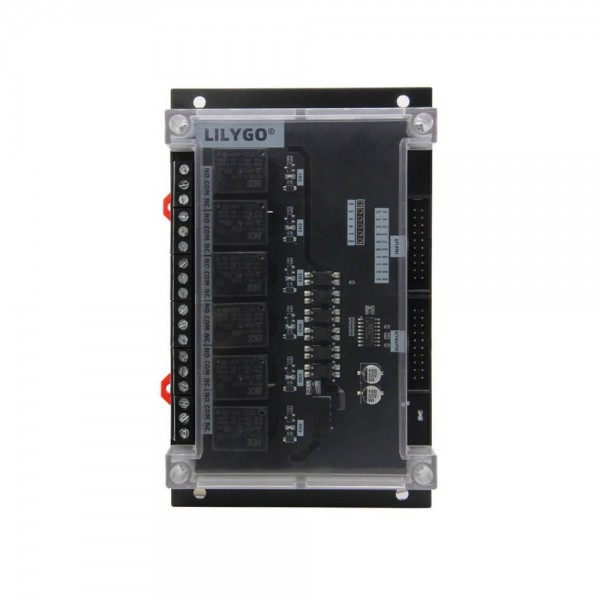

LilyGo T-Relay Chain - 6 Channel Relay Module

Availability: Directly available from warehouse in Eindhoven
SKU: 005220

Based on 0 review(s) - Write a review

€18.50

Ex Tax: €15.29

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

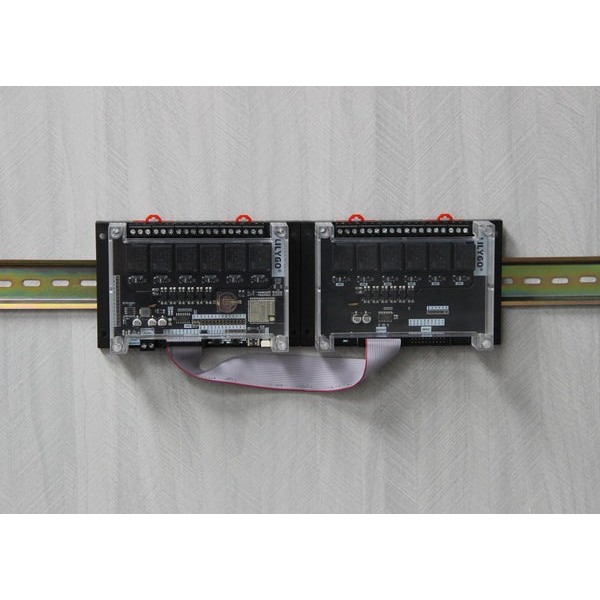

An expansion module for the T-RelayS3. The module is easy to connect via the included cable. In total, a maximum of 3 can be connected in sequence for a total of 24 relays (including the 6 of the T-RelayS3).

Please login or register to review

Reviews Over LilyGo T-Relay Chain - 6 Channel Relay Module

Average Rating:

This product has 0 review(s) in total.

Tags: LilyGo T-Relay Chain - 6 Channel Relay Module , LILYGO-H630 , Relays

Specifications

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H630
Features	Electric switch Enclosure
General physical appearance
Main color	Black
Weight [g]	224 (incl. cable)
Dimension X [mm]	145
Dimension Y [mm]	90
Dimension Z [mm]	40

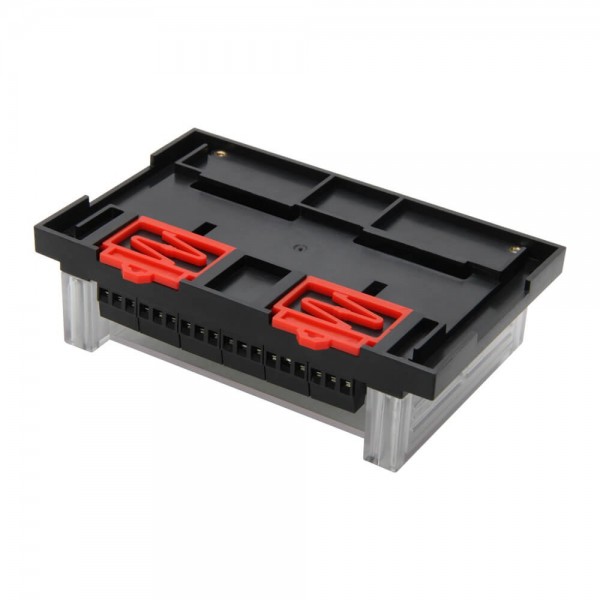

Mounting options	Mounting hole(s) DIN-rail (EN 60715)
Diameter mounting hole(s) [mm]	4.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	Digital (shift register)
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	6
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	10
Current per engaged relay [mA]	70
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Switch connector(s)	Screw terminal
Enclosure
Material	Plastic (unknown material)
Package contents
Package contents	1x T-Relay Chain 1x Connection cable
