DFRobot Latching Relay 10A
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005118
€7.00
Ex Tax: €5.79
Your shopping cart is empty!

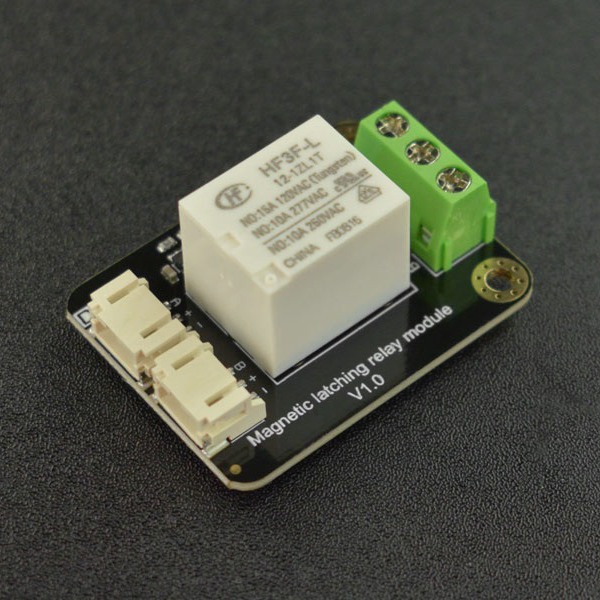

A latching relay module from DFRobot that works on both 3.3V and 5V. This relay holds its last set state, even when powered off.

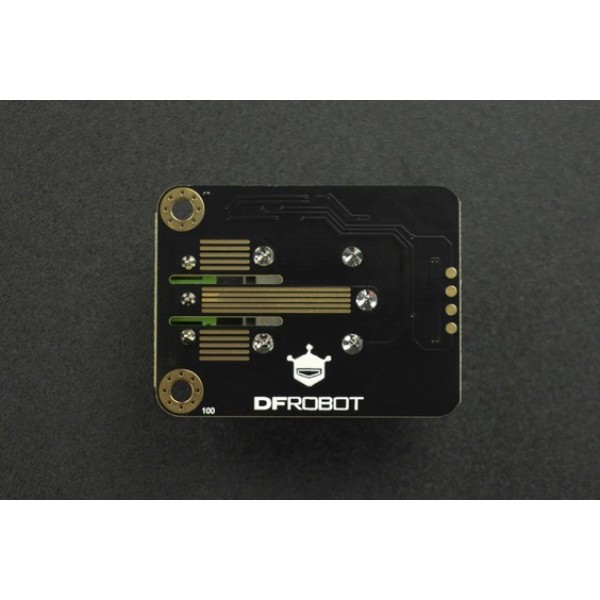

Note: Due to the PCB design, this module is not safe for switching mains voltage.
See the following page for more information: Wiki
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | DFR0996 |
| Model revision | V1.0 |
| Minimum operating humidity [%R.H.] | 5 |
| Maximum operating humidity [%R.H.] | 85 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 85 |
| Features | Electric switch |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 16 |

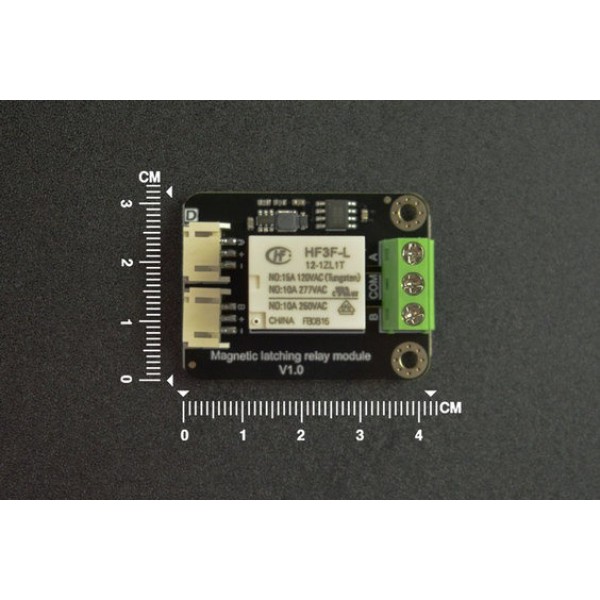

| Dimension X [mm] | 42 |
| Dimension Y [mm] | 32 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.1 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 5 |
| Communication | |
| Hardware interface(s) | Digital (puls of >2ms) |
| Switch | |
| Switching method | Electrical |
| Switch type | Mechanical relay (latching) |
| Number of channels/gangs | 1 |
| Contact(s) | NO (normally open) NC (normally closed) |
| Maximum switching voltage [V AC] | 50 |
| Maximum switching voltage [V DC] | 30 |
| Switching voltage equal to supply voltage | No |
| Maximum switch resistance [Ω] | 0.1 (@1A 6V DC) |
| Maximum switching current per channel (resistive load) [A] | 10 |
| Connectors | |
| Power supply connector(s) | JST-PH (compatible) male |
| IO-connector(s) | JST-PH (compatible) male |
| Switch connector(s) | Screw terminal |
| Package contents | |

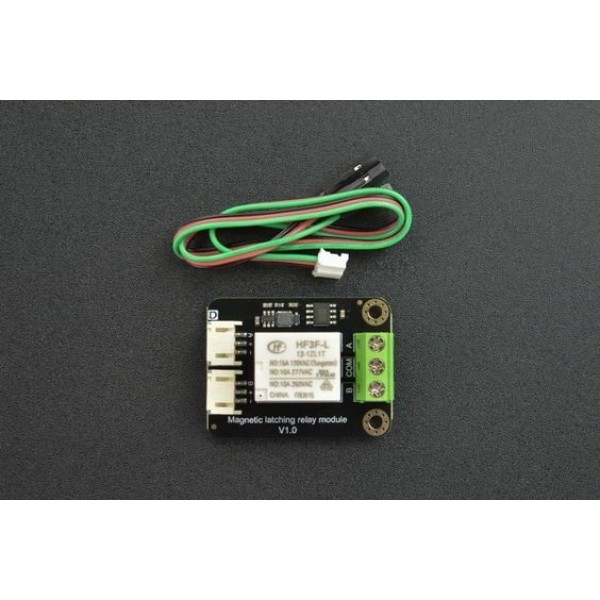

| Package contents | 1x Relay module 2x JST-PH to DuPont female cable |
