DFRobot Gravity 4 Channel Relay Shield - for Arduino

DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
DFRobot Gravity 4 Channel Relay Shield - for Arduino
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004121
Based on 0 review(s) - Write a review
€15.50
Ex Tax: €12.81
Add to Cart
Add to wishlist

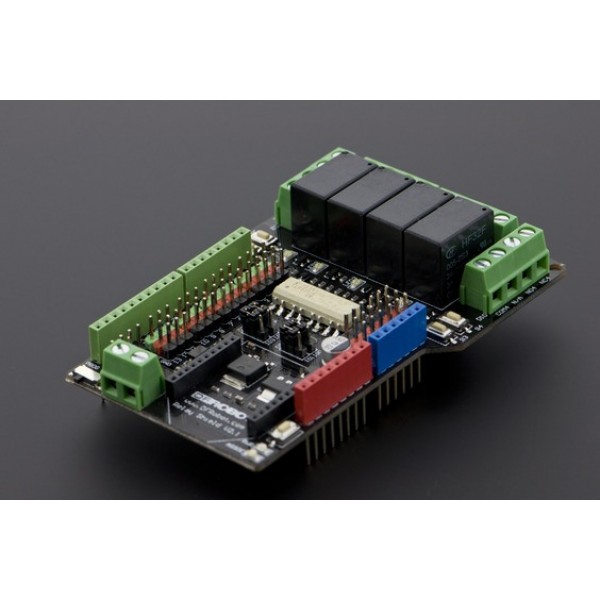

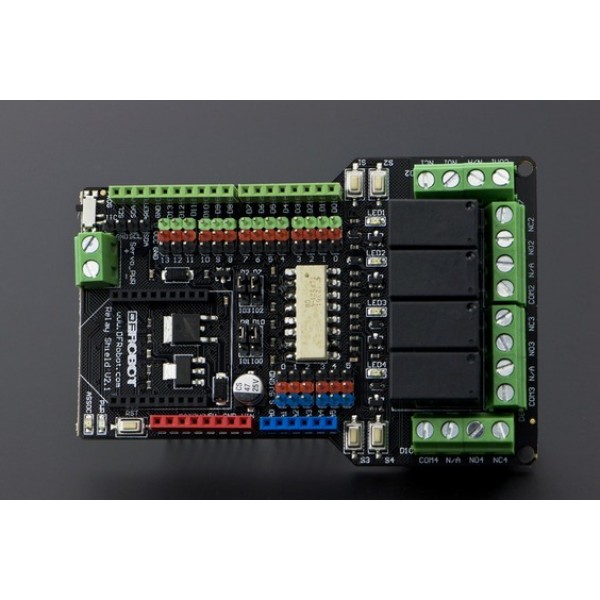

A relay shield suitable for Arduino Uno (compatible) boards. In addition to the relays, this shield also has an adapter for an Xbee module and a number of servo connectors.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity 4 Channel Relay Shield - for Arduino

This product has 0 review(s) in total.

Tags: DFRobot Gravity 4 Channel Relay Shield - for Arduino , DFROBOT-DFR0144 , Relays

Specifications

General
Brand DFRobot
Manufacturer model/SKU DFR0144
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 85
Features Electric switch
General physical appearance
Main color Black
Weight [g] 71

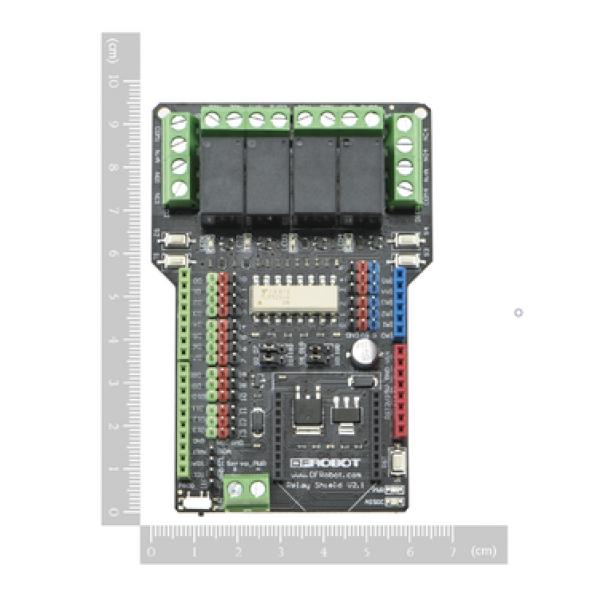

Dimension X [mm] 95
Dimension Y [mm] 65
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
Uno layout/shield
General electrical properties
Minimum supply voltage [V DC] 9
(via external power on the Uno)
Maximum supply voltage [V DC] 9
(via external power on the Uno)
Minimum recommended supply current [A] 0.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
Communication
Hardware interface(s) Digital (high-active)
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 4
Contact(s) NC (normally closed)
NO (normally open)
Lifespan 100000
(per relay)
Maximum switching voltage [V AC] 50
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 3
Current per engaged relay [mA] 90
Connectors
Power supply connector(s) Screw terminal
Pin header male (2.54mm)
Pin header female (2.54mm)
(The pin header (VIN pin Uno) is for the power supply for the relays (via external power on the Uno) and the screw terminal is for the servo connectors)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Switch connector(s) Screw terminal
Package contents

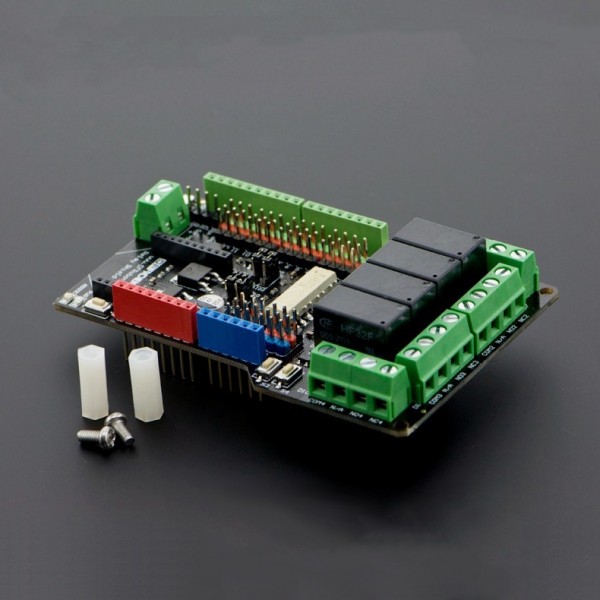

Package contents 1x Gravity 4 Channel Relay Shield
2x M3 bolt
2x Nylon spacer
