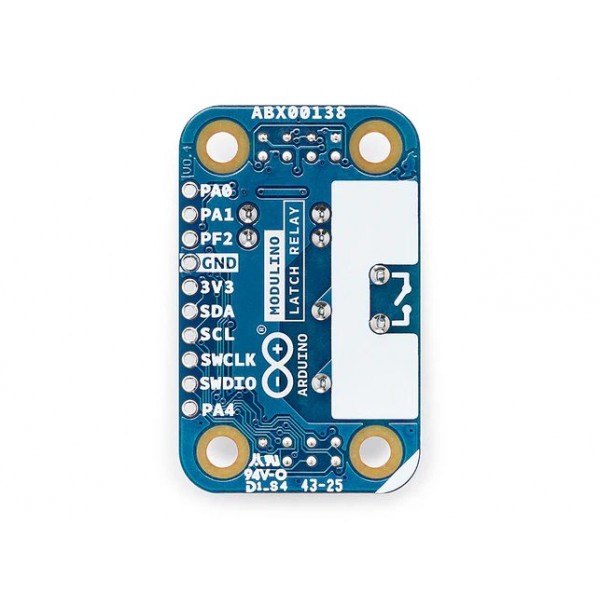

Arduino Modulino Latch Relay

Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
Arduino Modulino Latch Relay
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007561
Based on 0 review(s) - Write a review
€10.75
Ex Tax: €8.88
Add to Cart
Add to wishlist

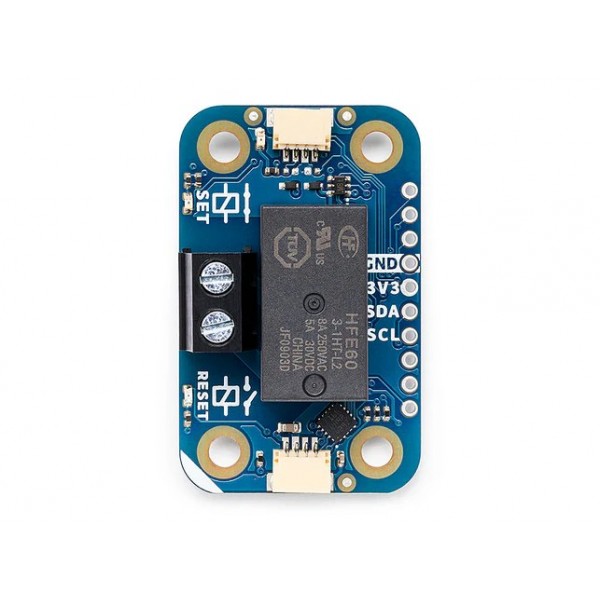

This module contains an (HFE60/3-1HT-L2) latching relay. With this module, you can easily switch high-power loads.

Note: This board is not safe for 250VAC switching and must only be used for DC loads (maximum 30V DC).

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Arduino Modulino Latch Relay

This product has 0 review(s) in total.

Tags: Relays , Relay Modules , Arduino Modulino Latch Relay , 007561 , Arduino , ABX00138 , Electric switch , I2C

Specifications

General
Brand Arduino
Manufacturer model/SKU ABX00138
Norm conformity CE
FCC
RoHS
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Electric switch
General physical appearance
Main color Blue
Weight [g] 10
Dimension X [mm] 41
Dimension Y [mm] 26
Dimension Z [mm] 12
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] Equal to I2C bus voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x2A
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] None
Switch
Switching method Electrical
Switch type Mechanical relay (latching)
Number of channels/gangs 1
Contact(s) NO/NC (normally open or closed: latching 2 pins)
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 5
Connectors
Power supply connector(s) JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-SH (compatible) male
Through hole solder pin(s) (2.54mm)
Switch connector(s) Screw terminal

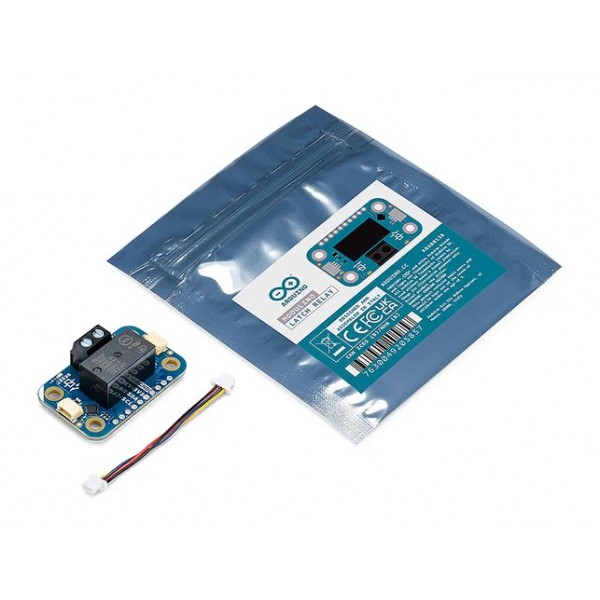

Package contents
Package contents 1x Relay module
1x JST-SH cable (5cm)
