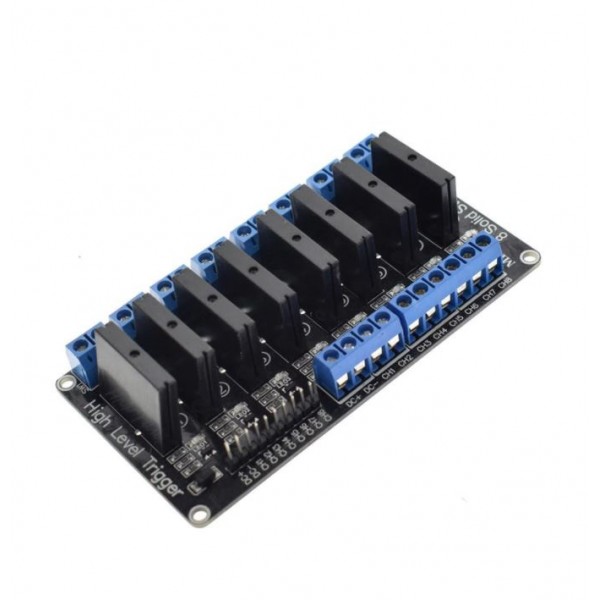

5V Solid State Relay 8-Channel High-active - 2A

A solid state relay (SSR) works the same as a standard (mechanical) relay. However, a solid state relay can be switched on and off much more often because it does not experience mechanical wear.

Specifications:

• Relay type: G3MB-202P
• Supply voltage: 5V DC
• Signal voltage: 3.3-5V
• Voltage across relays: 100-240V AC
• Maximum current through relay: 2A
• Number of channels: 8
• High-active: Relay switches on at a voltage between 3-5V and switches off at a voltage between 0-2.5V
• Dimensions: 106 x 56 x 25mm

Pinout:

• DC+: 5V supply voltage
• DC-: Ground/GND
• CH1-CH8: Signal pins
• A1-A8 and B1-B8: Relay pins

Note: This solid state relay is only suitable for switching AC voltages!
