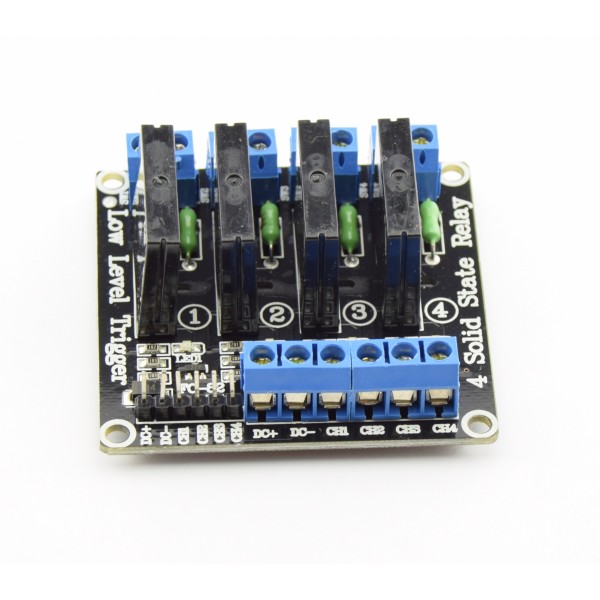

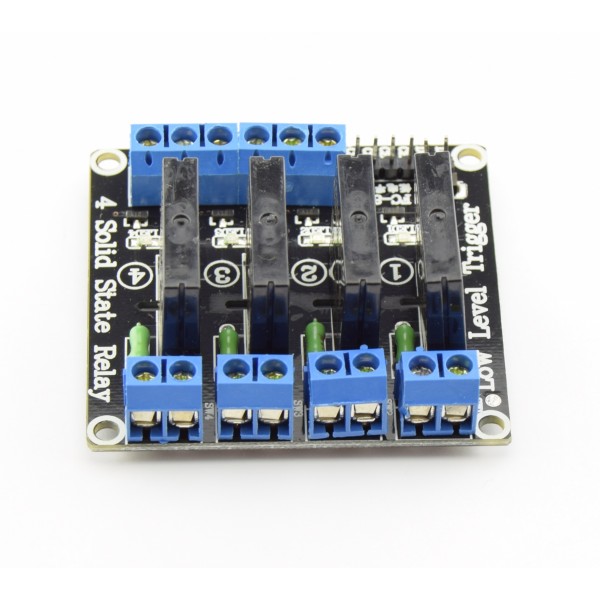

5V Solid State Relay 4-channel low-active - 2A

A solid state relay works the same as a standard (mechanical) relay. However, a solid state relay can be switched on and off much more often because it is not subject to mechanical wear.

Specifications:

• Uses 5V G3MB-202P Solid State relay that can switch 100 to 240V AC 2A.
• Dimensions: 57 x 55 x 25 mm
• Voltage: 5V
• Four relays to enable four AC voltages
• Power consumption: approximately 15mA per relay
• Relay switches off at a voltage between 3-5V and switches on at a voltage between 0-2.5V (low-active)
• Note: This solid state relay is only suitable for switching AC voltages!

* Another type of solid state relay with similar specifications may be provided.

Pin description:
