5V Relay Module for ESP-01(S) - 1 Channel - Low-active

2-4 Weeks

5V Relay Module for ESP-01(S) - 1 Channel - Low-active

Based on 2 review(s) - Write a review

€2.50

Ex Tax: €2.07

10 or more €2.40

20 or more €2.30

50 or more €2.20

100 or more €2.10

Qty

Add to Cart

Add to wishlist

Not in stock

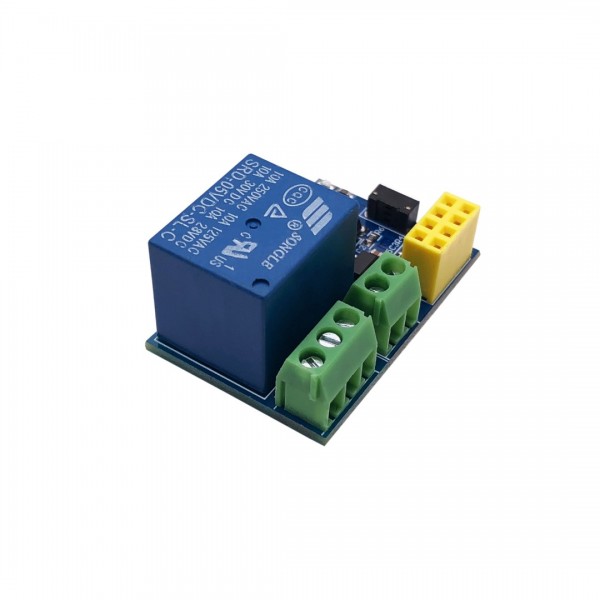

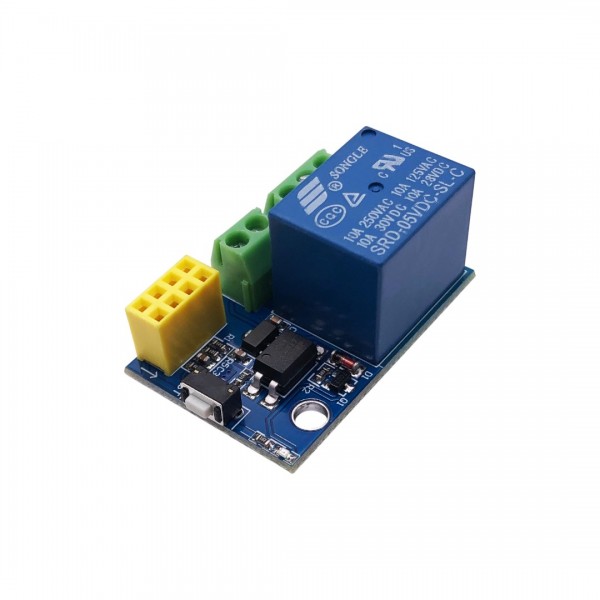

A relay module specially made to be switched by an ESP-01(S) module.

Note: An ESP-01(S) module is not included.

Please login or register to review

This product has 2 review(s) in total.

Tags: 5V Relay Module for ESP-01(S) - 1 Channel - Low-active , 5VRELL-ESP01 , Relay Modules

General
Brand	No brand
Features	Electric switch
General physical appearance
Main color	Blue
Weight [g]	15
Dimension X [mm]	37
Dimension Y [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.7
Form factor	Module (general) ESP-01 layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
Communication
Hardware interface(s)	Digital (low-active) (GPIO0 of the ESP-01(S))
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	1
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	50
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	10
Connectors
Power supply connector(s)	Screw terminal
IO-connector(s)	Pin header female (2.54mm)
Switch connector(s)	Screw terminal
Package contents
Package contents	1x Relay Module for ESP-01(S)
