5V Relay Module - 4 Channels - High-active or Low-active - 30A

5V Relay Module - 4 Channels - High-active or Low-active - 30A
5V Relay Module - 4 Channels - High-active or Low-active - 30A
2-4 Weeks
5V Relay Module - 4 Channels - High-active or Low-active - 30A
5V Relay Module - 4 Channels - High-active or Low-active - 30A
5V Relay Module - 4 Channels - High-active or Low-active - 30A
  • Availability: 2-4 Weeks
  • SKU: 005718
Based on 0 review(s) - Write a review
€10.25
Ex Tax: €8.47
Add to Cart
Add to wishlist

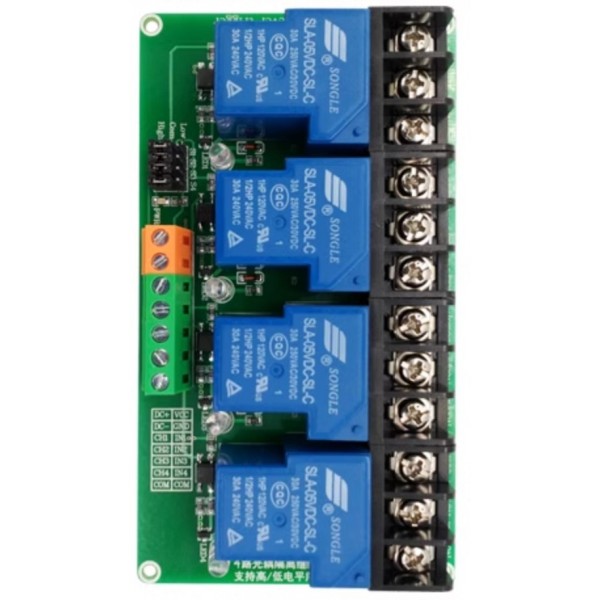

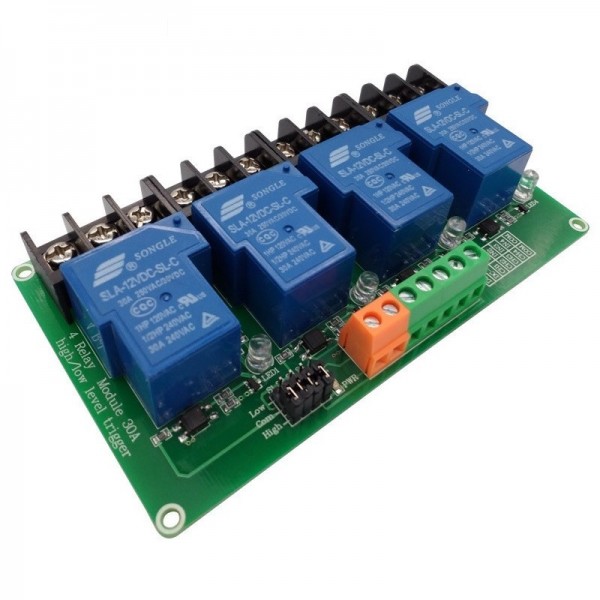

An easy to use relay module with 4 channels. Each channel can be set to either high- or low-active.

Note: In the low-active setting there is ~5V on the signal pin, which makes it often not suitable for 3.3V microcontrollers.

Please login or register to review

Reviews Over 5V Relay Module - 4 Channels - High-active or Low-active - 30A

This product has 0 review(s) in total.

Tags: Relays , Relay Modules , 5V Relay Module - 4 Channels - High-active or Low-active - 30A , 005718 , No brand , Electric switch , Digital (low-active) , Digital (high-active)

Specifications

General
Brand No brand
Features Electric switch
General physical appearance
Main color Green
Weight [g] 180
Dimension X [mm] 130
Dimension Y [mm] 72
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
Maximum IO-pin source current [mA] 9
(low active)
Maximum IO-pin sink current [mA] 9
(high active)
Communication
Hardware interface(s) Digital (low-active)
Digital (high-active)
(adjustable via jumper)
Switch
Switching method Electrical
Switch type Mechanical relay
Number of channels/gangs 4
Contact(s) NO (normally open)
NC (normally closed)
Maximum switching voltage [V AC] 250
Maximum switching voltage [V DC] 30
Switching voltage equal to supply voltage No
Maximum switching current per channel (resistive load) [A] 30
(NO)
20
(NC)
Current per engaged relay [mA] 205
Connectors
Power supply connector(s) Screw terminal
IO-connector(s) Screw terminal
Switch connector(s) Screw clamp terminal
Package contents
Package contents 1x Relay module
4x Jumper 2p
