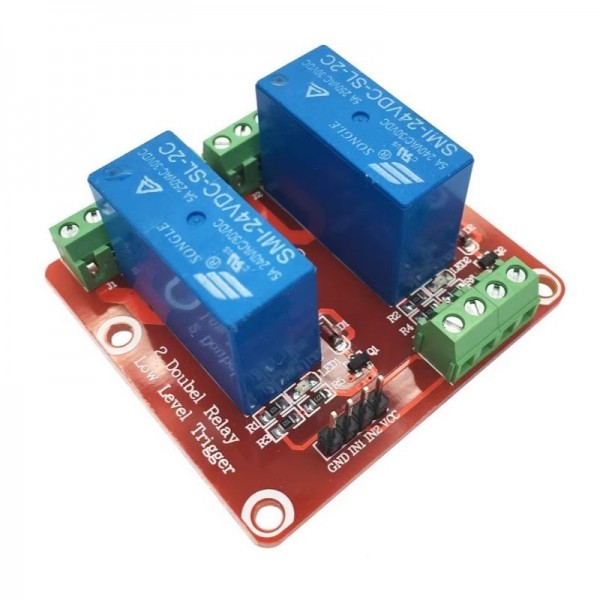

5V Relay Module - 2 Channels - 2 Poles - Low-active - 5A
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005719
€6.50
Ex Tax: €5.37
Your shopping cart is empty!
An easy to use relay module with 2 channels.
Check the tab "Downloads" for more information and/or downloads.
This product has 0 review(s) in total.
Datasheet: 005719_SMI-2P-datasheet.pdf
| General | |
| Brand | No brand |
| Features | Electric switch |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 44 |

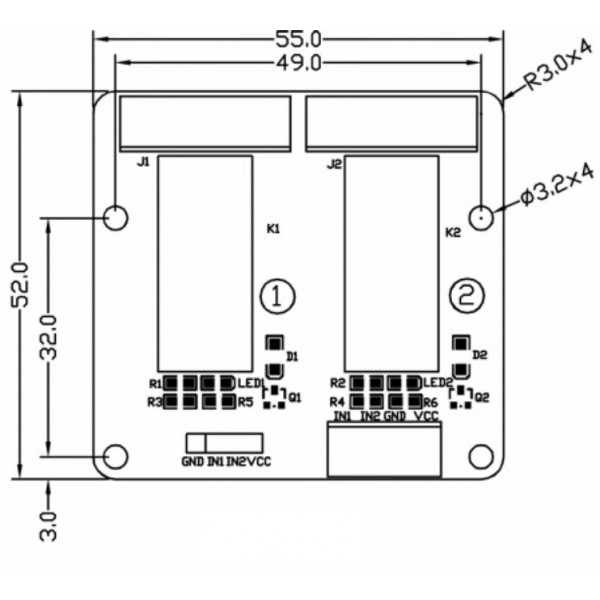

| Dimension X [mm] | 55 |
| Dimension Y [mm] | 52 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.2 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 5 |
| Maximum IO-pin input voltage [V] | 5 |
| Maximum IO-pin source current [mA] | 5 |
| Communication | |
| Hardware interface(s) | Digital (low-active) |
| Switch | |
| Switching method | Electrical |
| Switch type | Mechanical relay |
| Number of channels/gangs | 2 |
| Number of poles per channel | 2 |
| Contact(s) | NO (normally open) NC (normally closed) (2x per relay) |
| Maximum switching voltage [V AC] | 250 |
| Maximum switching voltage [V DC] | 30 |
| Switching voltage equal to supply voltage | No |
| Maximum switching current per channel (resistive load) [A] | 5 |
| Current per engaged relay [mA] | 110 |
| Connectors | |
| Power supply connector(s) | Screw terminal Pin header male (2.54mm) |
| IO-connector(s) | Screw terminal Pin header male (2.54mm) |
| Switch connector(s) | Screw terminal |
| Package contents | |
| Package contents | 1x Relay module |
