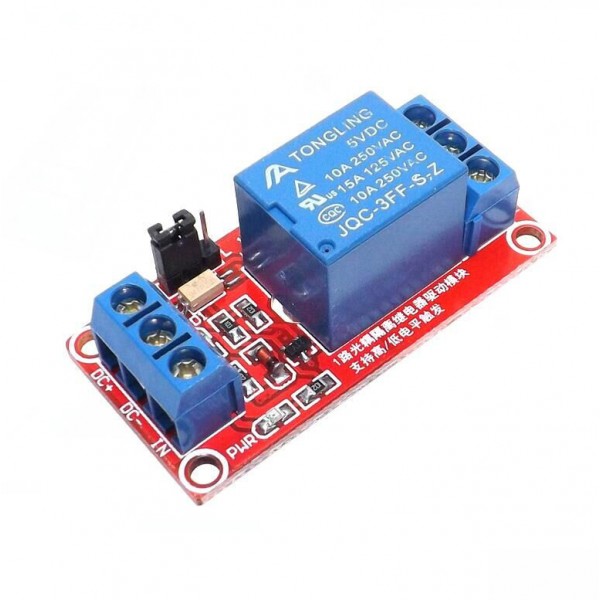

5V Relay 1-Channel High-active or Low-active

An easy to use relay module that can be set to high- or low-active.

Specifications:

• Supply voltage: 5V DC
• Signal voltage: 3.3-5V
• Current per relay (when switched on): ~70mA
• Signal current ("IN" pin): ~5mA
• Maximum voltage through relay: 250V AC or 110V DC
• Maximum current through relay:
  • Resistive load: 10A (125V AC), 7A (240V AC) or 7A (28V DC)
  • Inductive load: 3A (120V AC) or 3A (28V DC)
• Channel can be set to low-active ("L") or high-active ("H") with a jumper
• Number of channels: 1
• Dimensions: 50x26x20mm

Pinout:

• DC+: 5V supply voltage
• DC-: Ground/GND
• IN: Signal pin
• NO: Relay normally open
• COM: Relay common
• NC: Relay normally closed
