12V Relays with Adjustable Delay

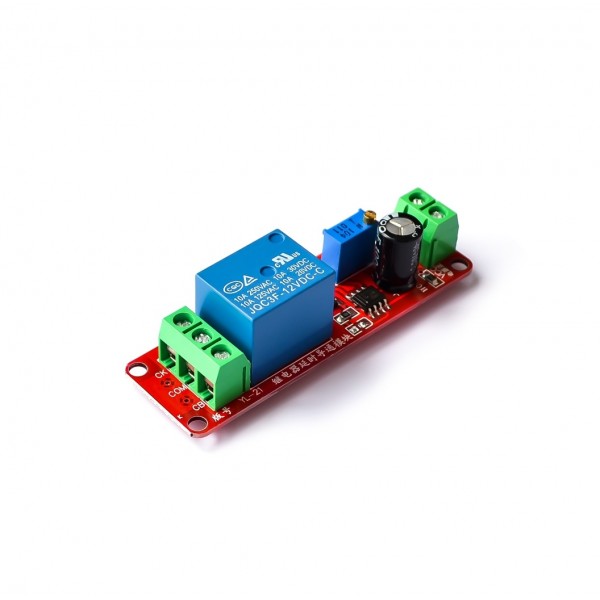

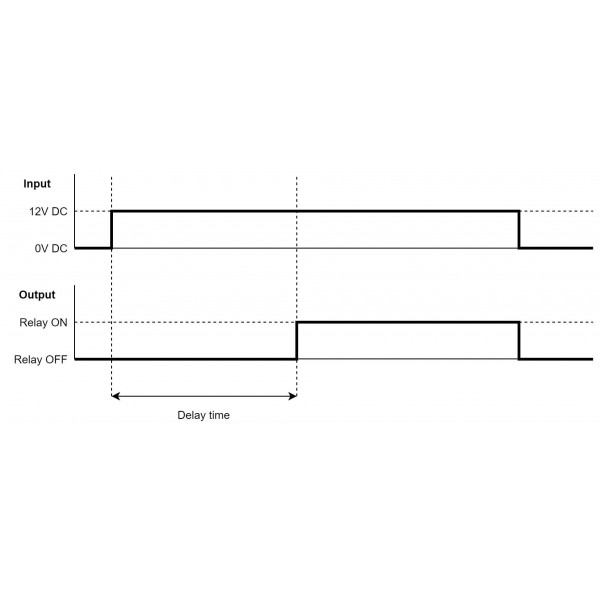

A relay with an adjustable delay that works on 12V. As soon as the relay is powered with 12V, it takes a few (adjustable) seconds before the relay switches. The relay will only switch back when the input voltage disappears (see images).

Specifications:

• Voltage (signal): 12V DC
• Power consumption (when enabled): ~ 46mA
• Maximum voltage due to relays: 24V
• Maximum current through relay: 10A
• Adjustable delay between 1 and 10 seconds
• Dimensions: 68 x 22 x 18.5 mm

Pinout:

• Connect the VCC with Vin signal
• Connect the GND (connection closest to the cement potentiometer) with the GND signal ground
• CB stands for the NC port
• COW stands for COM port
• CK stands for the NO port

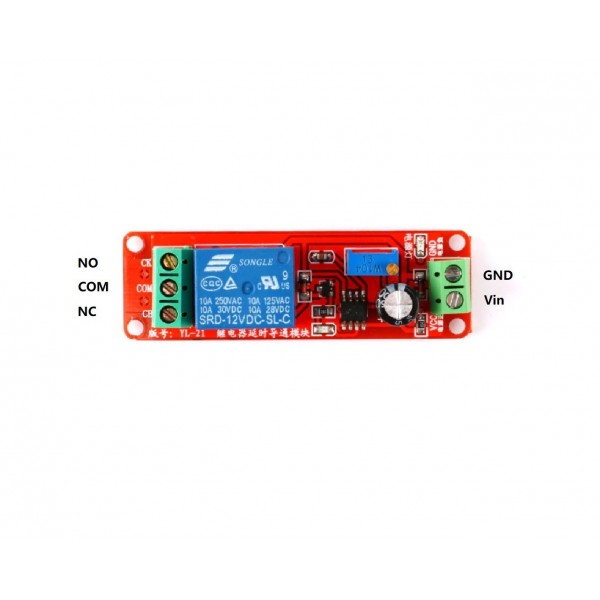

See attached image for pinout.

Note: This relay can switch a maximum of 24V. It is not suitable of high voltage such as 110V or 230V!
