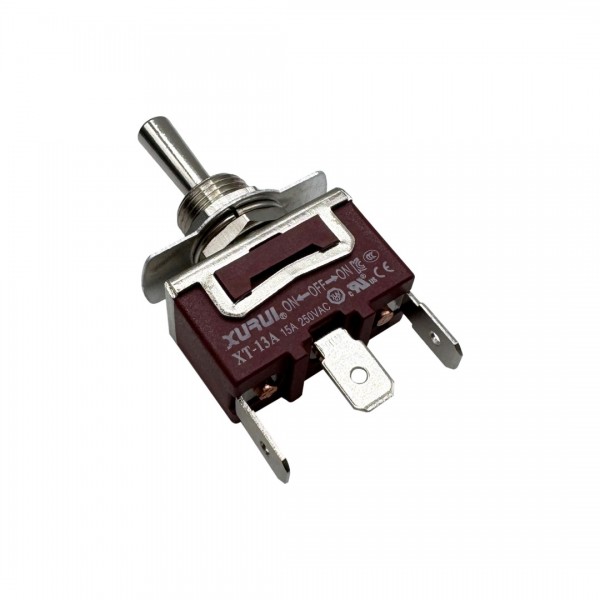

Xurui XT-13A Toggle Switch - Center-off SPDT

Xurui XT-13A Toggle Switch - Center-off SPDT
Xurui XT-13A Toggle Switch - Center-off SPDT
Xurui XT-13A Toggle Switch - Center-off SPDT
Xurui XT-13A Toggle Switch - Center-off SPDT
Xurui XT-13A Toggle Switch - Center-off SPDT
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007356
Based on 0 review(s) - Write a review
€2.50
Ex Tax: €2.07
Add to Cart
Add to wishlist

A toggle switch with a total of X positions (of which 3 fixed (on/off) position and 0 spring-back (reset/momentairy) position). The middle pin is connected to one of the outer pins, depending on the position of the switch.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Xurui XT-13A Toggle Switch - Center-off SPDT

This product has 0 review(s) in total.

Datasheet: 007356_Xurui_XT_toggle_switch_datasheet.pdf

Declaration of Conformity (DoC): 007356_DoC.pdf

Tags: Manual Switches , Toggle Switches , Xurui XT-13A Toggle Switch - Center-off SPDT , 007356 , Xurui , XT-13A

Specifications

General
Brand Xurui
Manufacturer model/SKU XT-13A
Norm conformity CE
RoHS
Minimum operating temperature [°C] -25
Maximum operating temperature [°C] 80
General physical appearance
Main color Red
Weight [g] 27
Dimension X [mm] 29
Dimension Y [mm] 16
(excl. terminals, threads and lever)
Dimension Z [mm] 16
Water and dust protection IP40
Mounting options Screw thread
Maximum mounting thickness [mm] 5.5
Recommended mounting dimensions [mm] ø12
Thread size M12x1
Thread length [mm] 12
Form factor Individual component
Switch
Switching method Physical (current/power switch)
Switch type Toggle
Number of channels/gangs 1
Number of poles per channel 1
Number of fixed (on-off) positions per channel 3
Number of spring-back (reset) positions per channel 0
Contact(s) NO (normally open)
NC (normally closed)
Lifespan 100000
(minimum)
Maximum switching voltage [V AC] 250
Maximum switch resistance [Ω] 0.025
Maximum switching current per channel (resistive load) [A] 15
Connectors
Switch connector(s) Disconnect male 6.3x0.8mm
Package contents
Package contents 1x On-off plate
1x Spring washer
1x Toggle switch
2x Nut
