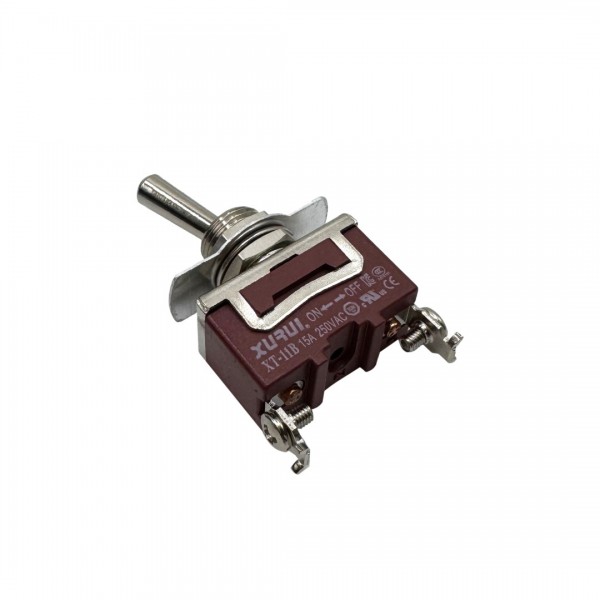

Xurui XT-11B Toggle Switch - SPST
- Availability: Directly available from warehouse in Eindhoven
- SKU: 007348
€2.40
Ex Tax: €1.98
Your shopping cart is empty!
A toggle switch with a total of X positions (of which 2 fixed (on/off) position and 0 spring-back (reset/momentairy) position).
Check the tab "Downloads" for more information and/or downloads.
Datasheet: 007348_Xurui_XT_toggle_switch_datasheet.pdf
Declaration of Conformity (DoC): 007348_DoC.pdf
| General | |
| Brand | Xurui |
| Manufacturer model/SKU | XT-11B |
| Norm conformity | CE RoHS |
| Minimum operating temperature [°C] | -25 |
| Maximum operating temperature [°C] | 80 |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 27 |
| Dimension X [mm] | 29 |
| Dimension Y [mm] | 17 (excl. terminals, threads and lever) |
| Dimension Z [mm] | 16 |
| Water and dust protection | IP40 |
| Mounting options | Screw thread |
| Maximum mounting thickness [mm] | 5.5 |
| Recommended mounting dimensions [mm] | ø12 |
| Thread size | M12x1 |
| Thread length [mm] | 12 |
| Form factor | Individual component |
| Switch | |
| Switching method | Physical (current/power switch) |
| Switch type | Toggle |
| Number of channels/gangs | 1 |
| Number of poles per channel | 1 |
| Number of fixed (on-off) positions per channel | 2 |
| Number of spring-back (reset) positions per channel | 0 |
| Contact(s) | NO (normally open) |
| Lifespan | 100000 (minimum) |
| Maximum switching voltage [V AC] | 250 |
| Maximum switch resistance [Ω] | 0.025 |
| Maximum switching current per channel (resistive load) [A] | 15 |
| Connectors | |
| Switch connector(s) | Screw clamp terminal |
| Package contents | |
| Package contents | 1x On-off plate 1x Spring washer 1x Toggle switch 2x Nut 2x Terminal screw |
